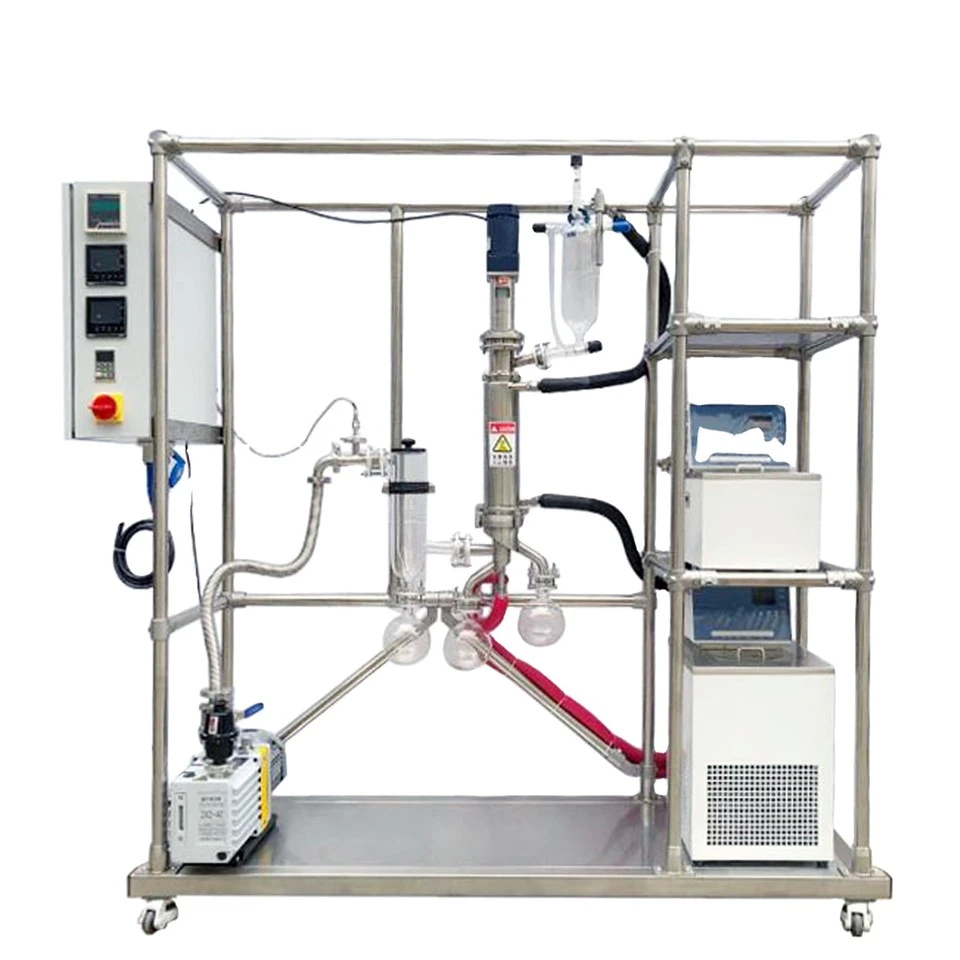

Short Path Molecular Distillation introduce
Molecular distillation is a special liquid-liquid separation technology that is carried out in a high vacuum environment and uses the difference in the free motion path of molecules of different substances to achieve separation.
Molecular distillation technology has been successfully applied to many fields such as food, condiments, hemp, garlic oil, cod liver oil, and chemical and pharmaceutical industries.
Short Path Molecular Distillation parameter
|
Model
|
Effective evaporation area (M2) | Condensation area (M2) | Barrel Inside diameter (mm) | Feeding funnel volume (L) | Processing flow (KG/H) | Power (W) | Max rotation speed (RPM) |
| BF-60A | 0.05 | 0.1 | 60 | 1.5 | 0.1-2.0 | 120 | 450 |
| BF-80A | 0.1 | 0.15 | 80 | 1.5 | 0.3-4.0 | 120 | 450 |
| BF-100A | 0.15 | 0.2 | 100 | 1.5 | 0.5-5.0 | 120 | 450 |
| BF-150A | 0.25 | 0.4 | 150 | 1.5 | 1.0-8.0 | 120 | 450 |
| BF-200A | 0.35 | 0.5 | 190 | 1.5 | 1.5-10.0 | 200 | 300 |
| BF-230A | 0.5 | 0.65 | 220 | 1.5 | 2.0-15.0 | 200 | 300 |
