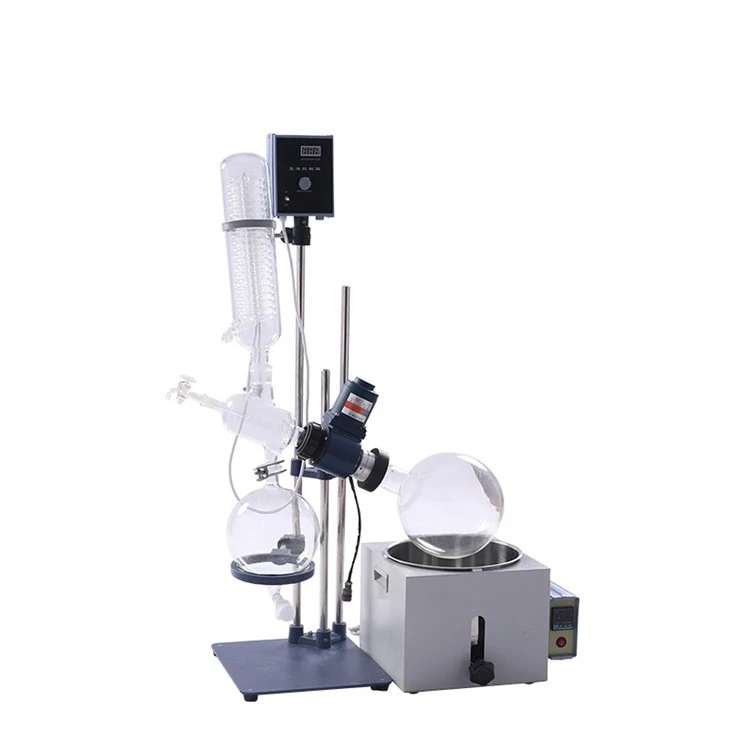

5l Rotary Evaporator

Laboratory re-501 Manual 5l rotary evaporator

We offer a full range of custom solutions to meet your specific process requirements. The capacity can be 300ml-100L.We also have stainless steel evaporator, industrial reactors, and hydrothermal synthesis reactors.

Rotary Evaporator(Rotavp)is a commonly used experimental instrument in chemical laboratories. It is mainly used for continuous distillation of large amounts of volatile solvents under reduced pressure conditions. It can be used for concentration of extracts and distillation of receiving liquids during chromatographic separations, and can also separate and purify reaction products.

1. Adopt polytetrafluoroethylene and fluororubber composite seal to maintain a high vacuum degree.

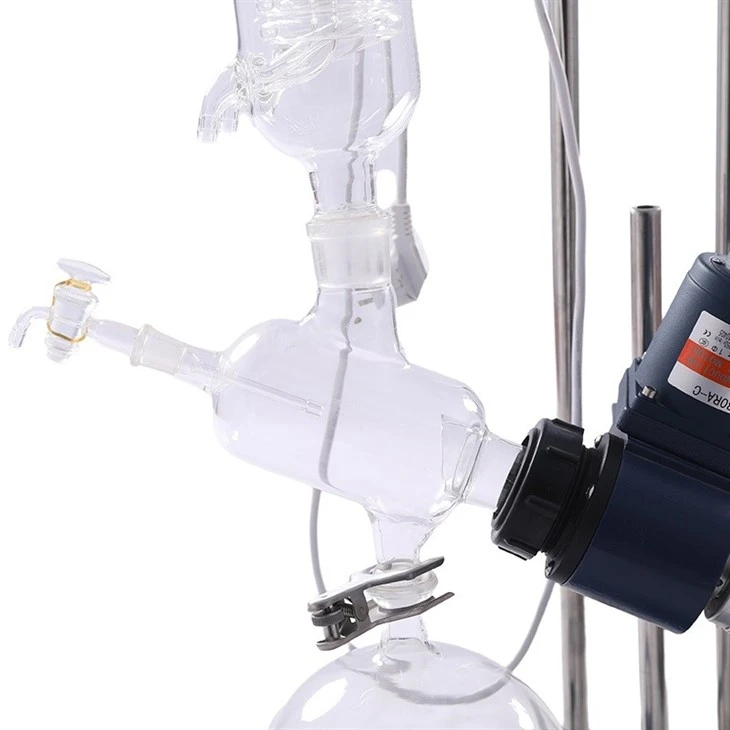

2. Vertical double-layer serpentine coil condenser to ensure a high recovery rate, with additional material pipe.
3. The vacuum pressure gauge displays the real-time vacuum degree, and the vacuum degree can reach 0.098Mpa.

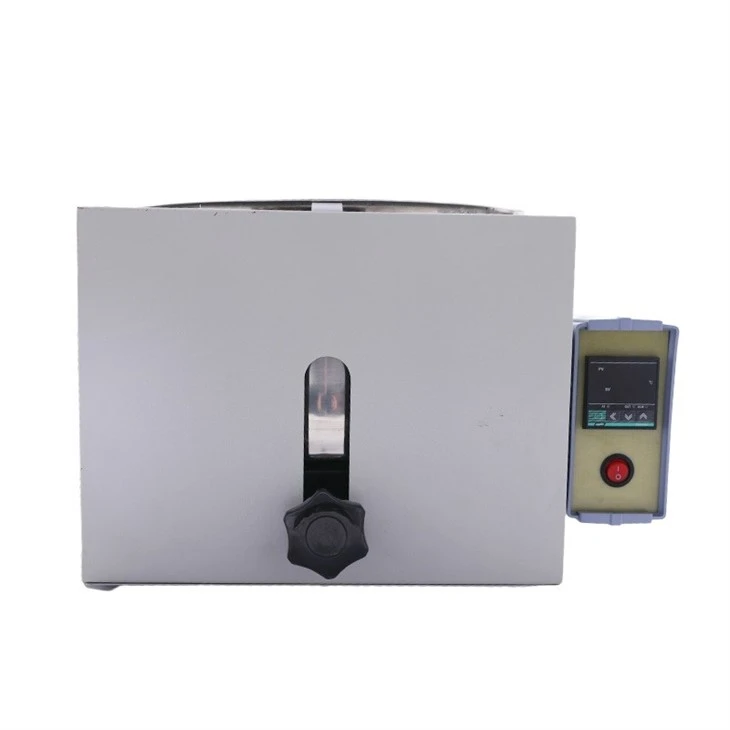

4. The bath pot has digital display, intelligent constant temperature control, and the K-type sensor transfers temperature quickly and accurately.
The condenser tube is filled with sawdust, which has a shock-absorbing function to prevent breakage during transportation.
5. The water bath pot is digitally controlled continuously.
6. Reasonable structure and special material selection. The mechanical structure mainly uses stainless steel and aluminum alloy parts, and all glass parts are made of high-temperature resistant high-boron glass.

aDVANTAGE



SPECIFICATION

Model	RE-501
Glass meterial	GG-17
Holder material	Stainless steel
Pot shell Material	aluminium alloy
	310*320*240mm
Pot bravery	Stainless steel
	280*170mm
Plate size	350*330
Evaporator flask	5L
	flange mouth:Φ50mm
Collect flask	3L 35#
Vacuum degree	0.098Mpa
Rotary speed	0-120RPM
Rotary power	40W
Heating power	2KW
Heating temp.	0-400℃
Temp. accuracy	-1℃
Lifting stroke	120mm
Voltage	220/110V 50/60HZ
Dimension	700*335*1009
Packing size	1040*620*410mm
Packing weight	38kg
Configuration list
Speed mode	Electronic stepless
Speed Display	Digital
Temp. display	K type sensor Digital display
Temp. control	Intelligent temp.control
Sealing method	PTFE
Condenser	Vertical
	100*590mm 29#
Lifting mode	Manual lifting
Continuous feed
Discharge mode	PTFE Discharge valve
	flange mouth:Φ50mm
Vacuum Display	Vacuum gauge

aPPLICATION

Academic Research

Biochemical Engineering

Chemical Synthesis

Environmental Analysis

Food and Beverage Industry

Material Science

Petrochemical Industry

Pharmaceutical Production

WHY CHOOSE US

Factory direct sales with competitive price.

Premium quality with CE & ISO certification.

Strong product OEM & ODM customization capability.

Promise production & on-time delivery.

Perfect after-sales service, free product accessories.

15 years of experience in R&D and production of 1l-5l rotary evaporator machine.

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc.

Our product packaging has been proven for a long time, usually using plywood boxes or cartons with pallets. We will arrange suitable packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

 We can provide customers with complete experimental solutions, customize instruments to optimize experimental methods, and reduce customer phone costs to achieve the maximum distillation effect.
