Chemglass Reactor

Name: Chemglass Reactor
Brand: Beifan
SKU: 251575382

Brand: BEIFAN.
Model: 1-200L chemglass Reactor.
Application: The double-layer glass reactor adopts a double-layer glass design. The inner layer is filled with reaction medium for stirring reaction. It can be connected to a vacuum device, and the interlayer can be connected to different cold and heat sources (refrigerated liquid, hot water or oil) for cyclic heating or cooling reaction.

Send Inquiry

Download

Description

Laboratory chemglass reactor 1-200L customized

PRODUCTS VIDEO

We offer a full range of custom solutions to meet your specific process requirements. The capacity can be 1-200L.We also have stainless steel reactors, industrial reactors, and hydrothermal synthesis reactors.

PRODUCTION DESCRIPTION

Glass reactors can be used to safely handle solvents, acids, alkalis and other substances in a completely sealed reaction vessel. They are mainly used for testing and production in the pharmaceutical, chemical, and biological products industries.

Under vacuum and negative pressure, the double-layer glass reactor can be connected to high and low temperature circulation equipment (the medium can be oil or water) to heat, evaporate, separate, and recycle the materials in the reactor. All parts in contact with the material are made of high-temperature and corrosion-resistant borosilicate glass and polytetrafluoroethylene, which are suitable for the reaction of biological products that are easily decomposed and denatured, and are not easy to react with various materials.

FEATURES

1. The chemglass reactor full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide operating temperature range, from -60°C to 250°C.

3. Solvent-resistant PTFE seals ensure long-term durability and operability, with a vacuum degree of -0.098Mpa.
4. PT100 temperature, LCD display. The temperature measurement is more accurate and convenient.
5. Frequency conversion control, AC induction motor. Constant speed, brushless, spark-free, safe and stable, can work continuously.
6. Heavy-duty stainless steel support frame with lockable casters for easy movement and stability. (The whole stand and glass container are shipped pre-assembled)
7. Sturdy stainless steel reinforced PTFE agitator with anchor agitator, suitable for various viscosity materials. Multi-layer stirring blades are optional.
8. The bottom flange discharge port is with Teflon value, and the aluminum flange is fixed.
9. Provide remote video installation support and worry-free after-sales service.

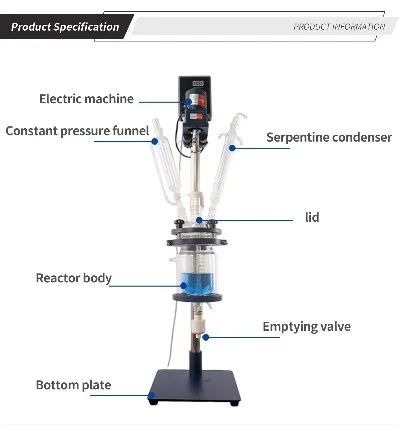

ADVANTAGES

rOTOdL7rOLt6p0Ye0EmbiBABdI4

1.High Quality booster motor, adjust speed 0-280 rpm.

CHEMGLASS REACTOR

2.High borosilicate double-layer glass reactor, PTFE layer stirring shaft.

chemglass reactor

3.Customizable covers can be added upon request.

4.Oil vacuum gauge, shockproof during stirring.

5.Serpentine condenser to expand the condensation area.

6.Discharge valve, convenient for discharging. PTFE parts are corrosion resistant.

SPECIFICATION

1~5 liters Mini Jacketed Glass Reactor

Model	BF-1	BF-2	BF-3	BF-5
Glass Material	GG-17	GG-17	GG-17	GG-17
Frame Material	304 SUS	304 SUS	304 SUS	304 SUS
Reaction bottle capacity	1L	2L	3L	5L
Jacketed Capacity	0.4L	0.5L	0.6L	0.8L
Flanged out of the oil circulation port	Low feed high outlet	Low feed high outlet	Low feed high outlet	Low feed high outlet
Reaction bottle cover	5	5	5	5
Discharger port distance to ground	30mm	30mm	30mm	30mm
Temp. range	-80-250℃	-80-250℃	-80-250℃	-80-250℃
Vacuum degreee	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa
Stirring speed	0-800rpm	0-800rpm	0-800rpm	0-800rpm
Stirring diameter	8mm	8mm	8mm	8mm
Stirring power	40W	40W	90W	90W
Coltage(V/Hz)	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Dimension(mm)	3503451000	3503451000	3504101250	3504101250
Plate size(mm)	325*345	325*345	325*410	325*410
Packign size(mm)	1200480400	1200480400	1380500400	1380500400
Packign weight(KG)	32	32	38	38

10-200liters Jacketed Glass Reactor

Model	BF-10LS	BF-20LS	BF-25LS	BF-30LS	BF-50LS	BF-80LS	BF-100LS	BF-150LS	BF-200LS
Glass Material	GG-17
Frame Material	304 Stainless steel
Fittings Material	304 Stainless steel
Moves	Brake Caster
Reaction bottle capacity	10L	20L	25L	30L	50L	80L	100L	150L	200L
Jacketed Capacity	6L	8L	8L	10L	12L	16L	18L	23L	28L
Flanged out of the oil circulation port	Low feed high outlet
Reaction bottle cover	Six port
Discharger port distance to ground	450mm
Temp. range	-80-250℃
Vacuum degreee	0.098Mpa
Stirring speed	0-450rpm							0-280rpm
Stirring diameter	12mm					15mm
Stirring power	90W1/3	120W1/3				250W1/3		750W1/5
Coltage(V/Hz)	220V/50Hz
Dimension(mm)	5205202000	5605602100	5605602300	7605602300	7605602450	6106102400	6106102400	12508502920	13009003400
Packing size(mm)	1370590800	1480660810	1670670860	1720680850	1720680850	1900700870	1900700870	22009301350	23009301350
Packign weight(KG)	68kg	80kg	88kg	88kg	92kg	125kg	125kg	180kg	190kg

Speed mode	electronic stepless						Frequency control speed
Motor	Whole cooper wire, ratio 3: 1
Speed display	Digital display
Temp. display	PT100 sensor, digital display
Sealing method	Tetrafluoroethylene seal assembly, ¢ 50 flange stirring port					Tetrafluoroethylene seal assembly, ¢ 60 flange stirring port
Condenser	Vertical 100*670mm,40#port	Vertical 120*640mm,40#port						Vertical 120*800mm,40#port
Reflux(distillation) apparatus	Reflux elbow with discharger port, milling mouth 50 #
Dropping device	1L,Constant pressure funnel,40# port	2L,Constant pressure funnel,40# port
Pressure relief device	34# Pressure reducing valve
Temperature tube	24#
Solid addition	￠80 Flang with tetrafluoroethylene cover
Discharge mode	Oblique discharge with glass discharger value,￠80 Flang
Vacuum Display	Vacuum Universal joints
Stirring Connection	Universal joints connection
Stir bar	Anchor stainless steel rods, outsourcing tetrafluoroethylene
