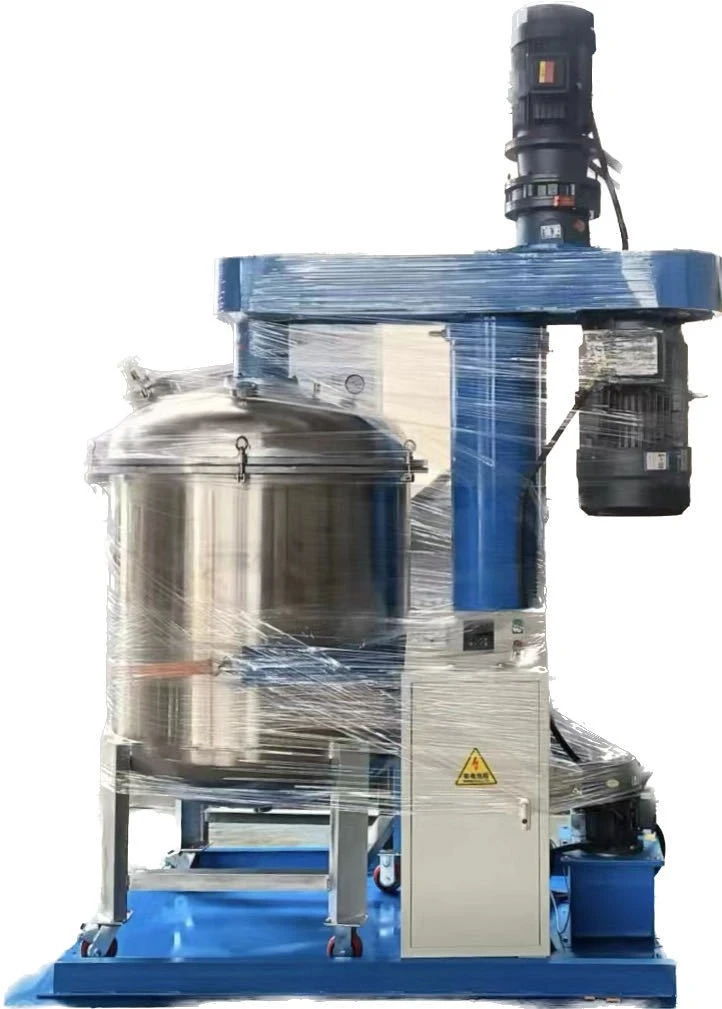

Planetary vacuum mixer machine principle:
It has a wall scraper device to ensure that the material sticks to the surface of the equipment cylinder; the stirring system can be lifted and lowered, which can meet the needs of using multiple containers for circulation, heating, heat preservation, and heat insulation; the stirring speed can be automatically controlled by program and frequency conversion; equipment It can be lifted hydraulically or pneumatically; it can be vacuumed. Suitable for large-volume production of high-viscosity materials. The unique design and spiral blade can ensure that high-viscosity materials can be turned up and down without any dead ends. Equipped with low-speed wall-scraping mixing blades to mix materials more evenly. Using vacuum defoaming, the material is discharged under pressure while stirring, which is fast and no bubbles are generated. The powder is sucked in from the bottom of the tank through vacuum, without dust pollution. The high-speed disperser uses double dispersing discs to avoid dead ends.
Planetary vacuum mixer machine parameter
model: BF800L
Dispersed power/Kw:30
Dispersion speed/rpm:1440
Dispersion disc diameter/mm:300
Scraping power/Kw:15
Scraping speed/rpm:0-10
Processing capacity/L:800
Stroke/mm:1200
