The main function of the dissolution tester is to monitor the release process of the drug, help pharmaceutical manufacturers understand the dissolution mechanism and kinetic process of the drug, and then optimize the preparation formula and production process.
RC series instruments are used to detect the dissolution rate and extent of tablets, capsules and other drugs in prescription solvents.
Applicable standards:
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010

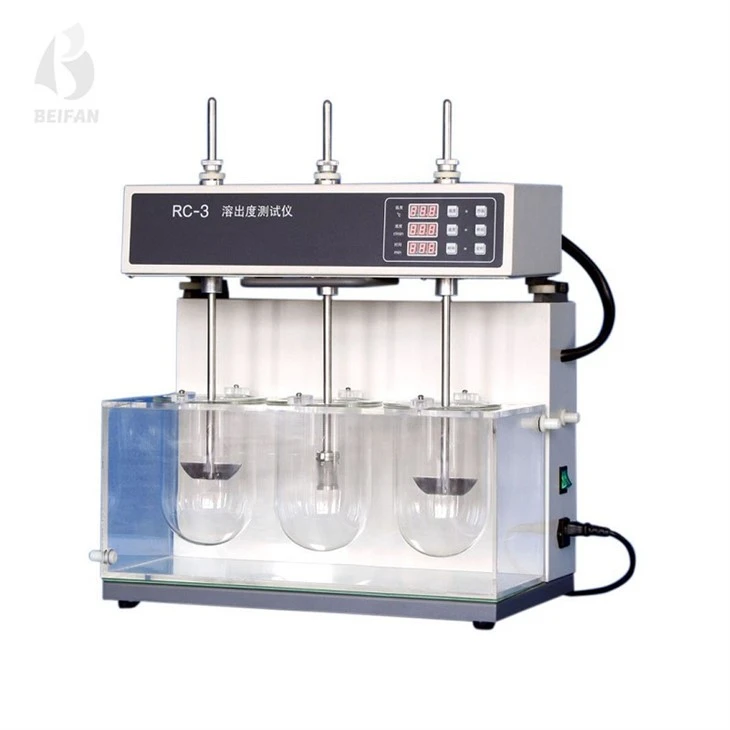

Features about Three Vessels Dissolution tester:
1 It has three boats and three poles arranged in a row.
2. The instrument head can be turned over manually, which is stable and flexible.
3. The basket body and paddle body are made of imported stainless steel (SUS316L).
4. The magnetic circulating water flow makes the system evenly heated and the temperature of the bath liquid uniform.
5 The dissolution analyzer uses MPU to automatically control temperature, rotation speed, and time, and the parameters can be preset at any time.
6. The buttons are easy to operate. The measurement results are displayed by LED. Preset data and actual data can be displayed alternately in time.
7 Automation: automatic testing, automatic diagnosis, automatic alarm.
Specifications:
|
Speed range |
(20~200)rpm |
|
Speed accuracy |
±2rpm |
|
Temperature range ambient to |
+45.0℃ |
|
Temperature Stability |
±0.3℃ |
|
Preset timing nine points |
(5~900)min |
|
Time accuracy |
±0.5mm |
|
Paddle radial |
run-out ±0.5mm |
|
Basket radial |
run-out ±1.0mm |
|
Power |
220V/50Hz/600W or 110V/60Hz/600W |
|
Dimension |
(510*300*480)mm3 |
