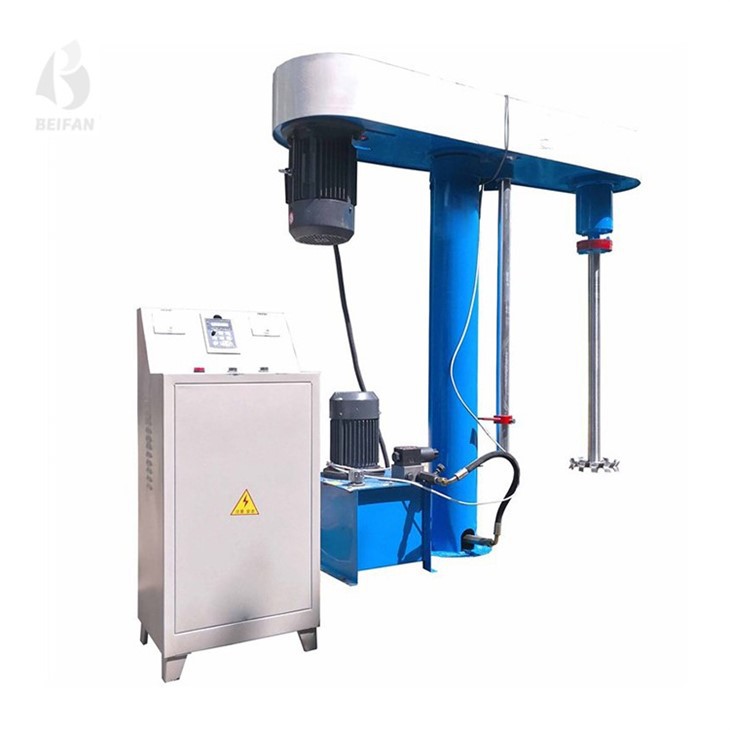

Emulsifying Disperser Machine
video
Emulsifying Disperser Machine

Emulsifying Disperser Machine

Brand:BEIFAN
Model:BFS
Application:The emulsifying disperser machine is suitable for emulsifying, mixing and dispersing materials in coating and ink, food, cosmetics, medicine, pesticides, papermaking and other industries.
Send Inquiry
Description

The emulsifying and dispersing machine is a high-speed dispersing and grinding dual-purpose machine for experiments. It is suitable for mixing, dissolving and dispersing various liquids in the laboratory, as well as experimental equipment for dissolving, dispersing and grinding high-viscosity materials. It is widely used in various pigments, Dispersion experiments in paint and other industries provide basic data for scientific research, pilot testing and mass production, and provide scientific process basis for scientific research. The working principle of the emulsification and dispersing machine is to emulsify, mix and disperse the materials to uniformly distribute the fineness of the materials. Through the powerful high-speed shearing function, the product can meet the emulsification and dispersion requirements in a short time. The emulsifying and dispersing machine is suitable for emulsifying, mixing and dispersing materials in coating and ink, food, cosmetics, medicine, pesticides, papermaking and other industries.



Feature:

Silent noise reduction/powerful dispersion/high efficiency and energy saving/complete supporting thickened base

1. Dispersing blades: The dispersing blades are made of stainless steel and have a solid structure and are durable in use.

2. Stable performance: high energy, low dryness, strong power, double oil seal structure, not easy to leak oil.

3. Carefully selected containers: Multiple stainless steel cylinders can be equipped according to user requirements for alternate use to improve work efficiency.

4. Console: high-quality electronic equipment, more accurate.



Type

NFS-2.2

NFS-4

NFS-5.5

NFS-7.5

NFS-11

NFS-15

NFS-18.5

NFS-22

Main Motor

Power (Kw)

2.2

4

5.5

7.5

11

15

18.5

22

Impeller

Rotational

Speed (rpm)

80~1250 or customized

Dispersion Plate

Diameter(mm)

150~200

150~200

200~250

250~300

300

350

350

350~400

Stirring-axis

Max Stroke (mm)

1000 or customized

Installation Height (mm)

3100

3100

3100

3100

3100

3200

3200

3200

Overall

Dimensions(mm)

L

1500

1500

1500

1500

1500

2000

2000

2000

W

550

550

550

550

550

700

700

700

H

2100

2100

2100

2100

2100

2200

2200

2200

Weight (Kg)

600

640

710

730

830

930

1050

1070
