motorized syringe pump Introduction
TYD01-01 laboratory syringe pump
This is a high-precision syringe pump that supports multiple working modes and has the following features:
1. It supports multiple working modes and is a high-precision device.

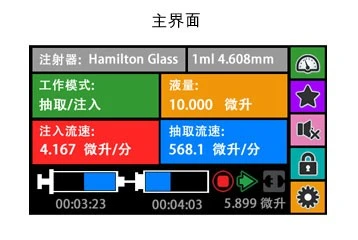

2. Equipped with high-resolution color touch screen LCD for easy parameter setting.
3. A variety of indicator lights, the working status is clearly visible.
4. Supports a variety of syringe options.
5. Meets different experimental flow requirements, has high control accuracy, and has protection and alarm mechanisms.
6. Supports five working modes including injection and extraction.
7. Built-in RS-485 communication, supports Modbus protocol.
8. Full metal shell, wide range of power input, suitable for various occasions.
Suitable for 0.5-60ml syringes, linear speed 1um/min-60mm/min. In addition, it also has the following features:
1. Can be equipped with syringe.
2. Multiple working modes available.
3. Color touch screen, easy to operate.
4. Support screen lock and key mute.
5. The button is equipped with an indicator light to show the working status.
6. Supports a variety of standard and customized syringes.
7. Fine control.
8. Syringe protection and traffic jam alert.
9. RS485 communication and Modbus protocol.
10. External signals control start, stop and direction.
11. Wide range power input.
12. Full metal casing.
motorized syringe pump technical parameter:
|
Applicable syringe |
10ul-60ml; |
|
Working mode |
injection, extraction, injection extraction, extraction injection, continuous mode; |
|
Display |
4.3-inch color LCD, resolution 480 * 272, color 65K; |
|
Operation mode |
resistive touch screen + button; |
|
Accuracy |
±0.5%; |
|
Linear thrust |
greater than 16kg, the thrust can be adjusted; |
|
Step by step per microstep |
0.15625um / ustep; |
|
Speed moving speed |
150mm / min; |
|
The slowest moving speed |
1um / min; |
|
External control 24V signal input control start and stop and direction; |
|
|
Working status signal output; |
|
|
Power supply voltage |
100-240V 50 / 60Hz; |
|
Environmental requirements |
5-40 ° C <80% RH; |
|
Full metal casing; |
|
|
Size |
245 * 195 * 133mm |
Selection reference (flow = line speed × cross-sectional area inside the syringe)
|
Syringe specification |
Syringe inner diameter (mm) |
Minimum flow (NL / min) |
Maximum flow rate (ml/min) |
|
50μl |
1.03 |
0.004 |
0.124 |
|
1ml |
4.61 |
0.083 |
2.504 |
|
5ml |
10.3 |
0.417 |
12.498 |
|
10ml |
14.57 |
0.834 |
25.009 |
|
25ml |
23.03 |
2.083 |
62.484 |
|
50ml |
26.59 |
2.776 |
83.294 |
