Microfluidic Syringe Pump

microfluidic syringe pump Applications:

TFD01-01 Single channel Split syringe pump with CE

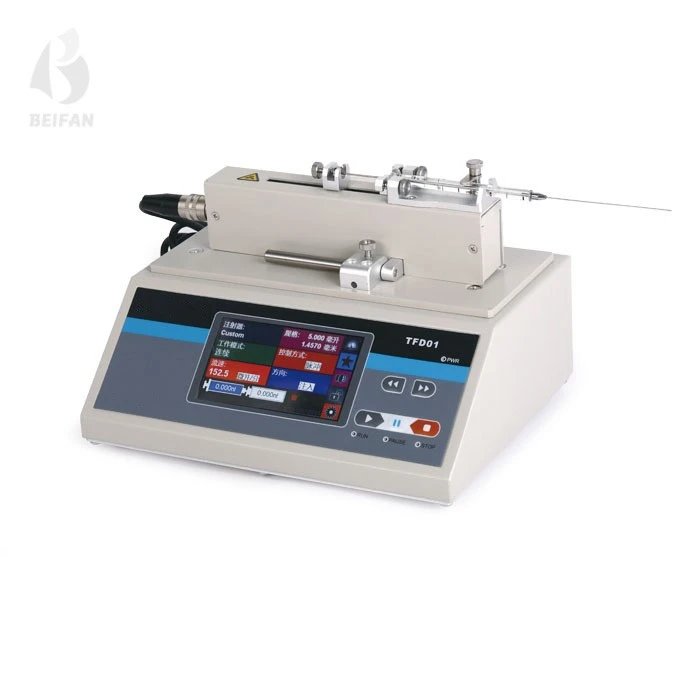

Introduction to laboratory syringe pump TFD01-01

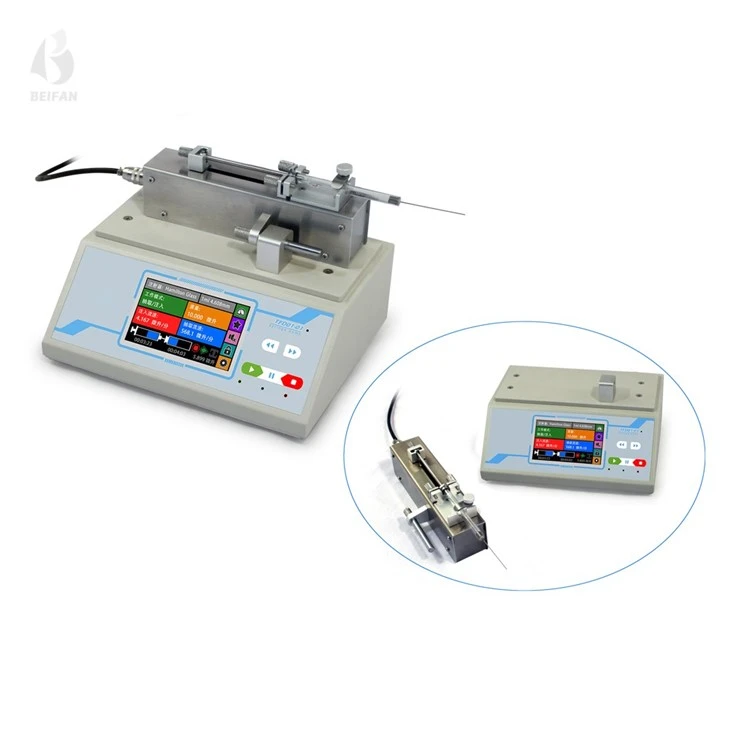

TFD01-01 Syringe Pump is a single-channel multi-mode micro-injection pump. Its controller and actuator are split structure. The actuator is equipped with a mounting bracket for easy cooperation with micro-operation equipment, stereo positioner and other fixtures. The use unit can be used with 5ul-1000ul microliter syringes for high precision control and is suitable for various biological experiments. High-resolution color touch screen LCD, convenient to quickly set parameters, multiple indicators to clearly confirm its working status, support for injection and extraction and other five working modes. Built-in RS-485 communication, support Modbus protocol, full metal casing, wide range power input, suitable for various occasions.

TFD01-01 is suitable for 5ul-1ml syringes, line speed 1um / min - 150mm / min

Features and features:

• Can be fitted with a syringe;

• Multiple work mode options;

• Color touch screen LCD, easy and fast to operate;

• Support screen lock, button mute operation;

• The button is equipped with an indicator light, and the working state is clear and clear;

• Support a variety of standard syringes, customizable syringes;

• fine control;

• Syringe protection and traffic jam alarms;

• RS485 communication, support Modbus protocol;

• External signal control start and stop and direction;

• Wide range power input;

• Full metal casing

technical parameter:

• Software system: LF-Toutch-GUI (standard); computer control software LF-LabComSoft (optional)

• Syringe specifications: 5ul-1000ul;

• Working mode: injection, extraction, injection extraction, extraction injection, continuous mode;

• Number of channels: 1;

• Maximum stroke: 70mm;

• Stroke resolution: 0.198um / ustep;

• Line speed range: 0.635um / min - 95.25um / min;

• Line speed adjustment resolution: 0.635um / min;

• Stroke control accuracy: error <±0.5% (stroke>maximum stroke 30%);

• Maximum rated linear thrust: > 20N;

• Thrust adjustment: 1-100% arbitrarily adjustable;

• Syringe selection: built-in main manufacturer, the main model syringe is available for selection; you can use a custom syringe to directly input the inner diameter of the syringe;

• Flow Correction: A more accurate volume is obtained through a calibration procedure;

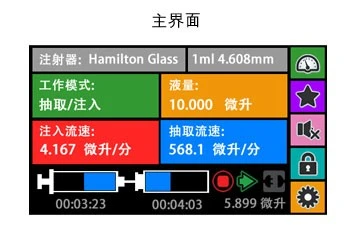

• Display: 4.3-inch color LCD, resolution 480 * 272, color 65K; same screen display transmission liquid volume, residual liquid volume, flow rate, running direction, syringe specifications, etc.; animation display operating status;

• Operation mode: touch screen + common function buttons;

• Power-down memory: set the parameters before powering down;

• Other functions: pause and stop; button tone prompt; lock parameters; fast forward and fast reverse;

• Status signal output: 1 way indicator stop status, 1 way indication direction status;

• Control signal input: 1 way falling edge triggers start, 1 way falling edge triggers stop;

• Communication interface: RS485, MODBUS protocol;

• Applicable power supply: AC90-264V / 20W;

• Working environment temperature: 5-40 ° C;

• Working environment relative humidity: <80% RH;

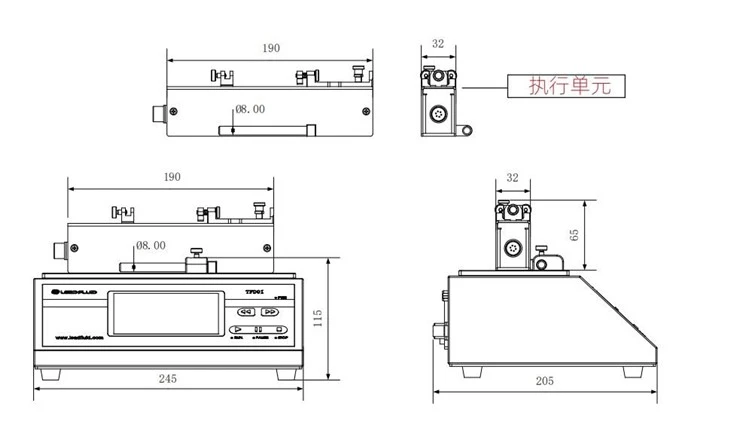

• Controller size: 245 × 195 × 133mm

• Execution unit size: 70 × 44 × 194mm

• Weight: 3.2kg

microfluidic syringe pump Selection reference (flow = line speed × cross-sectional area inside the syringe)
