Introduction:
This dissolution apparatus is versatile, powerful and easy to operate. It is an indispensable experimental equipment. It is one of the necessary experimental equipment in the field of pharmaceutical production and quality testing. The dissolution apparatus can accurately and quickly measure the dissolution and dissolution rate of drugs, helping drug manufacturers optimize preparation formulas and production processes to ensure the quality and safety of drugs. Moreover, dissolution instruments can be widely used in drug research and development, food safety, medical schools and other fields.
RC series instruments are used to detect the dissolution rate and extent of tablets, capsules and other drugs in prescription solvents.
Applicable standards:
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010

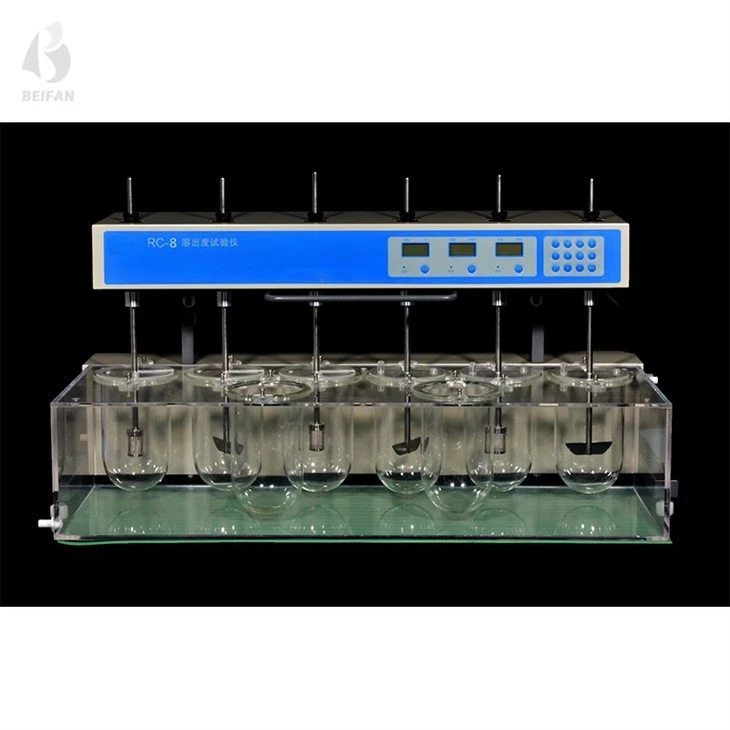

Features about RC-8 Eight Vessels dissolution test apparatus:
It has eight vessels and six poles, six vessels and six poles in front, and two vessels in the back.
The head of the instrument can be turned over manually, making it stable and flexible.
Both the basket unit and paddle unit are made of imported stainless steel (SUS316L).
The magnetic pump circulates water flow to make the system evenly heated and the bath liquid temperature uniform.
The dissolution analyzer uses MPU to automatically control temperature, rotation speed, and time, and the parameters can be preset at any time.
Convenient operation via buttons. The measurement results are displayed by LED. Preset data and actual data can be displayed alternately in time.
Automation: automatic testing, automatic diagnosis, automatic alarm.
Can self-detect and automatically alarm. The dissolution parameters of "Chinese Pharmacopoeia 2010" are stored and can be recalled at any time.
The time can be preset at many points. The buzzer will automatically sound to any point, and then the tester will automatically run to the next point.
Specifications:
|
Speed range |
(20~200)rpm |
|
Speed accuracy |
±2rpm |
|
Temperature range ambient to |
+45.0℃ |
|
Temperature Stability |
±0.3℃ |
|
Preset timing nine points |
(1~999)min |
|
Time accuracy |
±0.5mm |
|
Paddle radial run-out |
±0.5mm |
|
Basket radial run-out |
±1.0mm |
|
Power |
220V/50Hz/1200W or 110V/60Hz/1200W |
|
Dimension |
(960*440*480)mm3 |
