Working principle:

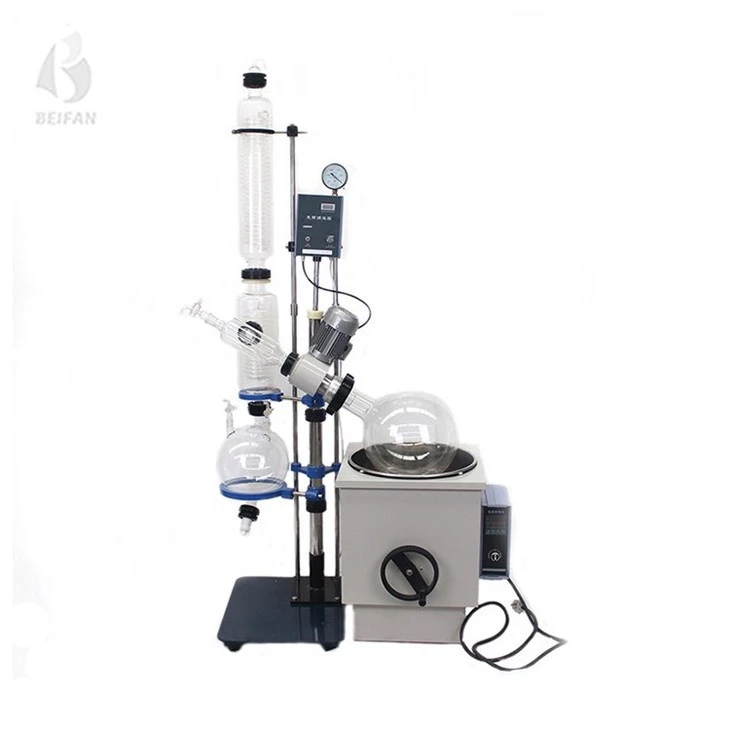

Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries. The principle is that under vacuum conditions, constant temperature heating causes the rotating bottle to rotate at a constant speed. The material forms a large area film on the bottle wall and evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency. It is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperatures.
Features:
It adopts polytetrafluoroethylene and rubber composite sealing to maintain high vacuum.
The main bracket is made of cold plate anti-corrosion spray plastic + aluminum alloy material, which has strong anti-corrosion and anti-oxidation characteristics.
The vacuum system is equipped with a vacuum gauge, and the pointer displays the vacuum degree.

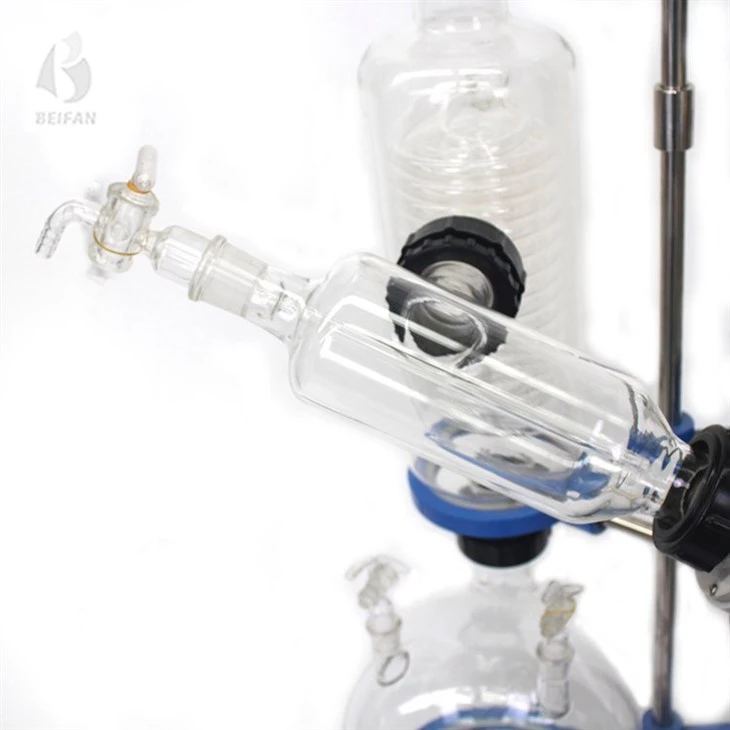

The piston-type feeding valve is connected to the PTFE extension tube, which can continuously feed the material to the evaporation bottle under vacuum, making it easy to use.

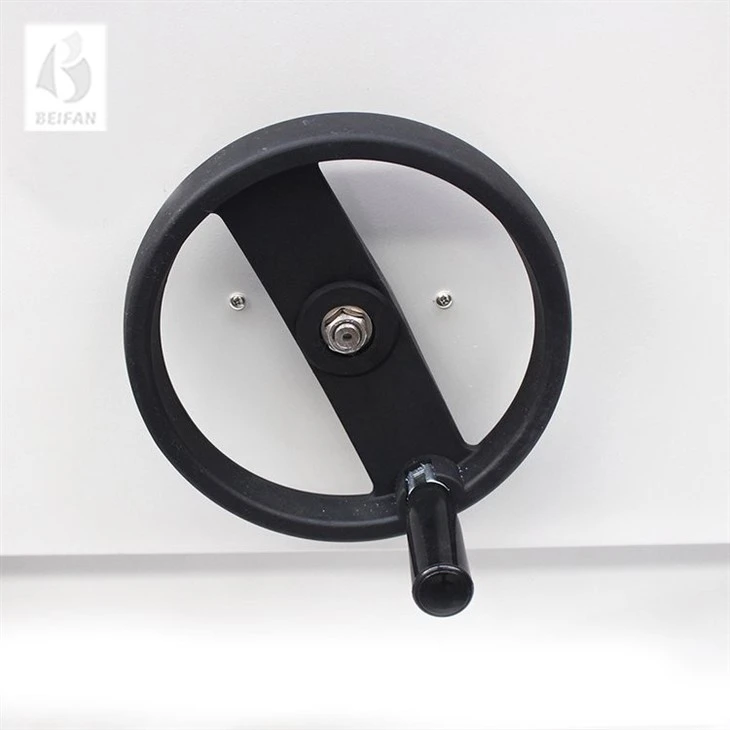

The main unit is fixed and the water bath pot is raised and lowered by a hand wheel, making the operation simple.
Vertical double-layer serpentine coil condenser, main cooling + auxiliary cooling double condenser to ensure high collection rate.
Anti-dry function, when the water level in the heating pot is lower than the heating tube, the machine will automatically cut off the power, making the operation flexible and durable.
Product parameters:
|
Product number |
YRE-2050A |
|
voltage |
220V/50HZ (110V/60HZ can be customized) |
|
Motor Power |
180W |
|
Water bath voltage |
220V/50HZ or 380V50HZ |
|
heating power |
8000W |
|
vacuum degree |
0.098Mpa |
|
Thermometer port |
Φ19# standard grinding mouth |
|
Evaporation capacity |
About 8L/h |
|
Rotary bottle capacity |
50L φ470mm φ125mm flange port |
|
Collection bottle capacity |
20000ml φ360mm φ60mm flange mouth |
|
Water bath liner dimensions |
Φ550×330H (mm) |
|
Water bath size |
700L×750W×800H (mm) |
|
Base plate size |
600L×800W (mm) |
|
Condenser size |
Main cooling φ160×750H (mm) Auxiliary cooling φ160×550H (mm) |
|
spinning speed |
0-120rpm/min |
|
Temperature control range |
Room temperature-99℃ |
|
Temperature control accuracy |
±1℃ |
|
Glass temperature range |
-80-250℃ |
|
Water bath lifting stroke |
0-170mm (manual) |
|
Feeding valve |
40# standard mouth |
|
Discharge valve |
Φ50 flange port PTFE top discharge valve |
|
Release valve |
Φ24# grinding mouth*2 |
|
Condenser circulation interface |
Pagoda connector outer diameter 16mm |
|
Vacuum exhaust port |
Outer diameter 12mm |
|
Overall dimensions of the machine |
1200L×650W×2200H (mm) |
|
Package Size |
pot 920L×860W×840H(mm) Glass 970L×840W×610H(mm) shelf 1570L×460W×400H(mm) |
|
Package weight |
The glass weighs 49Kg The shelf weighs 57Kg The pot weighs 100Kg |
