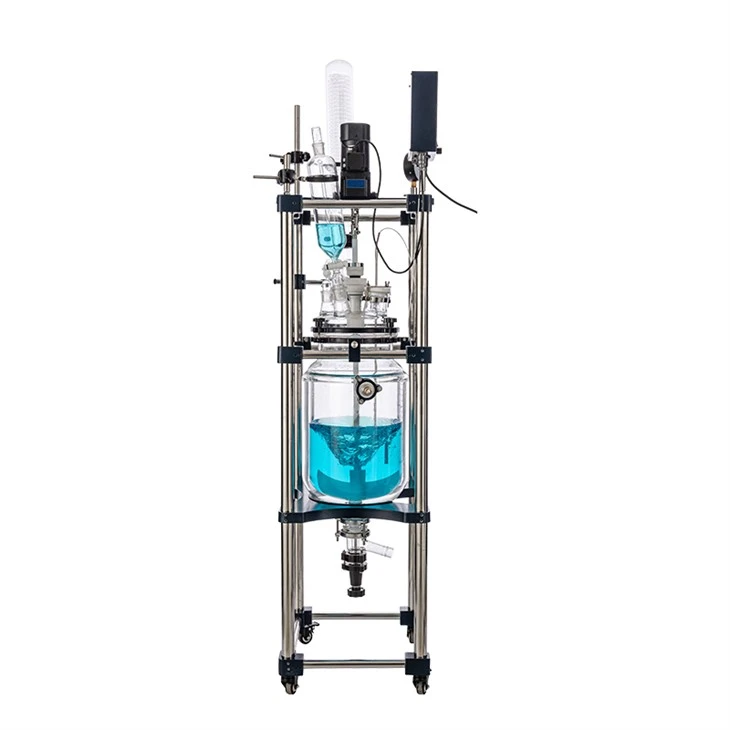

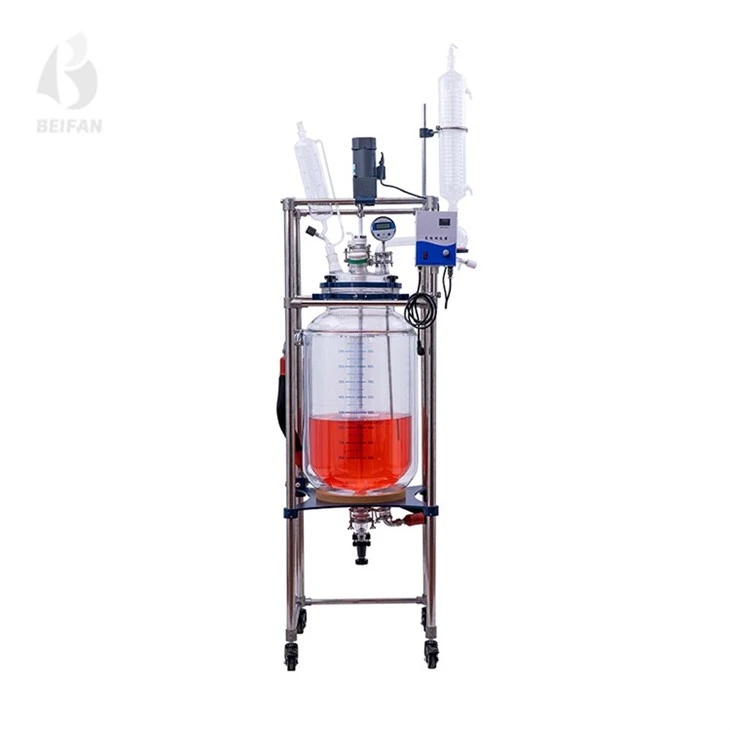

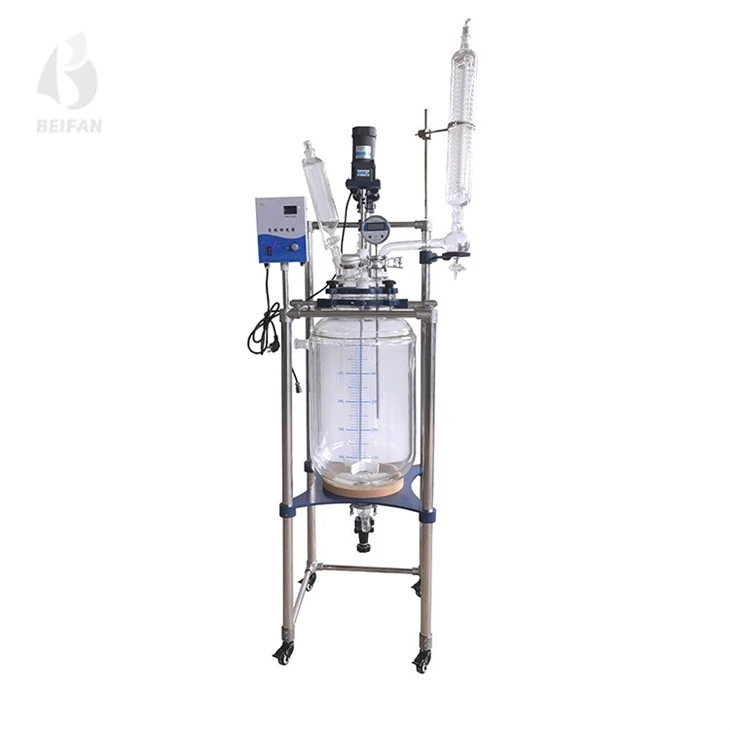

10L double-layer glass reactor is mainly used for testing and production in pharmaceutical, chemical, biological products and other industries. This product uses the principle of constant speed stirring to uniformly stir the raw materials under vacuum and negative pressure conditions, so that the materials can fully react in the kettle. The glass interlayer can be connected to high-temperature circulation equipment to heat, evaporate, separate and recycle the materials in the kettle. and other operations; external refrigeration cycle equipment can also be used to carry out low-temperature reactions in the kettle; if there is heating and cooling during the material reaction, an external high and low temperature cycle device can be used. Moreover, the parts in contact with materials are made of high temperature and corrosion-resistant high borosilicate glass and polytetrafluoroethylene materials, which are particularly suitable for the reaction of easily decomposed and denatured biological products and are not easy to react with various materials.
The main capacities of the double-layer glass reactor are 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L, and 200L, all of which have the function of lowering the material. Kettles above 10 liters are equipped with universal casters for easy movement, and the kettle has a temperature display function.
It can be used with a vacuum pump to improve work efficiency; the cooling coil of the glass condenser can be used with a low-temperature coolant circulation pump to improve recovery efficiency. Customers are asked to purchase supporting equipment by themselves. The interlayer of the kettle body can be equipped with heating, refrigeration equipment or high and low temperature circulation devices according to the material reaction requirements.
|
Model |
NB-10L |
|
Glass Material |
GG-17 |
|
Frame Material |
304 Stainless steel |
|
Fittings Material |
304 Stainless steel |
|
Moves |
Brake Caster |
|
Reaction bottle capacity |
10L |
|
Jacketed Capacity |
6L |
|
Flanged out of the oil circulation port |
Low feed high outlet |
|
Reaction bottle cover |
Six port |
|
Discharger port distance to ground |
450mm |
|
Temp. range |
-80-250℃ |
|
Vacuum degreee |
0.098Mpa |
|
Stirring speed |
0-450rpm |
|
Stirring diameter |
12mm |
|
Stirring power |
90W1/3 |
|
Coltage(V/Hz) |
220V/50Hz |
|
Dimension(mm) |
520*520*2000 |
|
Packing size(mm) |
1370*590*800 |
|
Packign weight(KG) |
68kg |
|
Speed mode |
electronic stepless |
|
Motor |
Whole cooper wire, ratio 3: 1 |
|
Speed display |
Digital display |
|
Temp. display |
PT100 sensor, digital display |
|
Sealing method |
Tetrafluoroethylene seal assembly, ¢ 50 flange stirring port |
|
Condenser |
Vertical 100*670mm,40#port |
|
Reflux(distillation) apparatus |
Reflux elbow with discharger port, milling mouth 50 # |
|
Dropping device |
1L,Constant pressure funnel,40# port |
|
Pressure relief device |
34# Pressure reducing valve |
|
Temperature tube |
24# |
|
Solid addition |
￠80 Flang with tetrafluoroethylene cover |
|
Discharge mode |
Oblique discharge with glass discharger value,￠80 Flang |
|
Vacuum Display |
Vacuum Universal joints |
|
Stirring Connection |
Universal joints connection |
|
Stir bar |
Anchor stainless steel rods, outsourcing tetrafluoroethylene |
