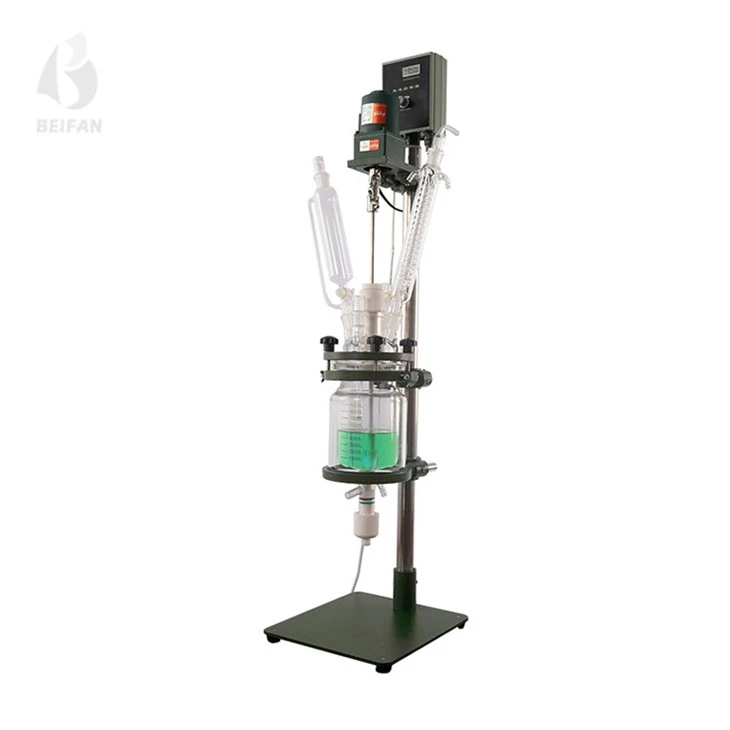

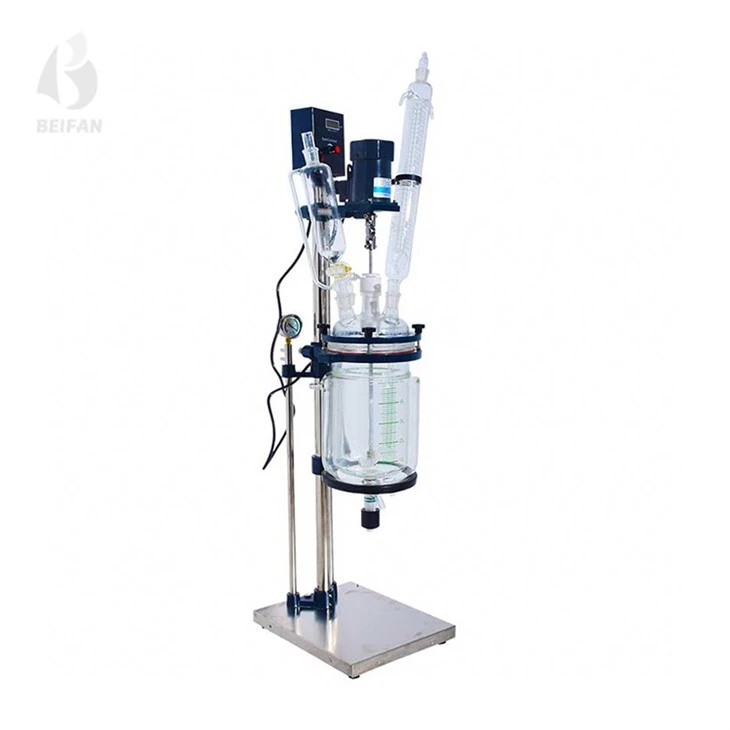

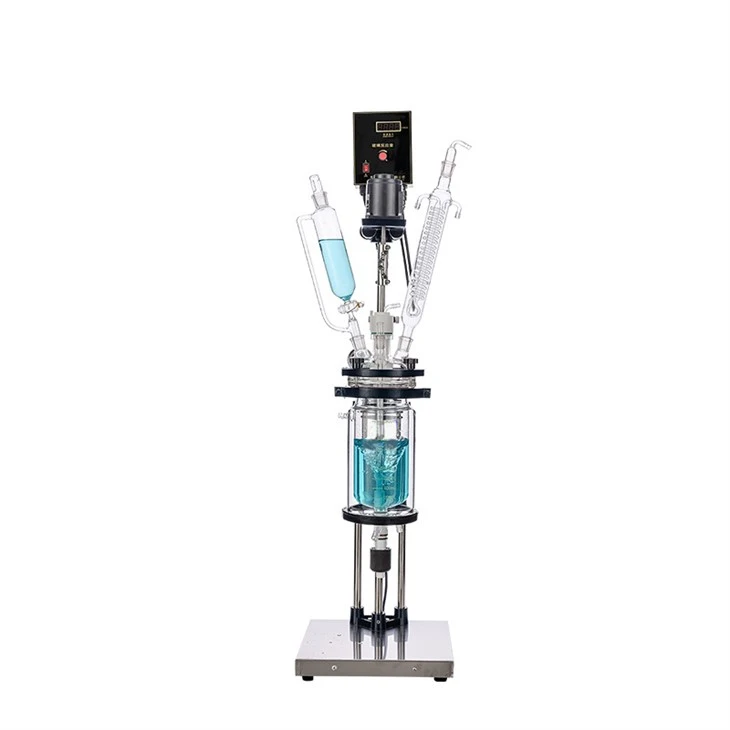

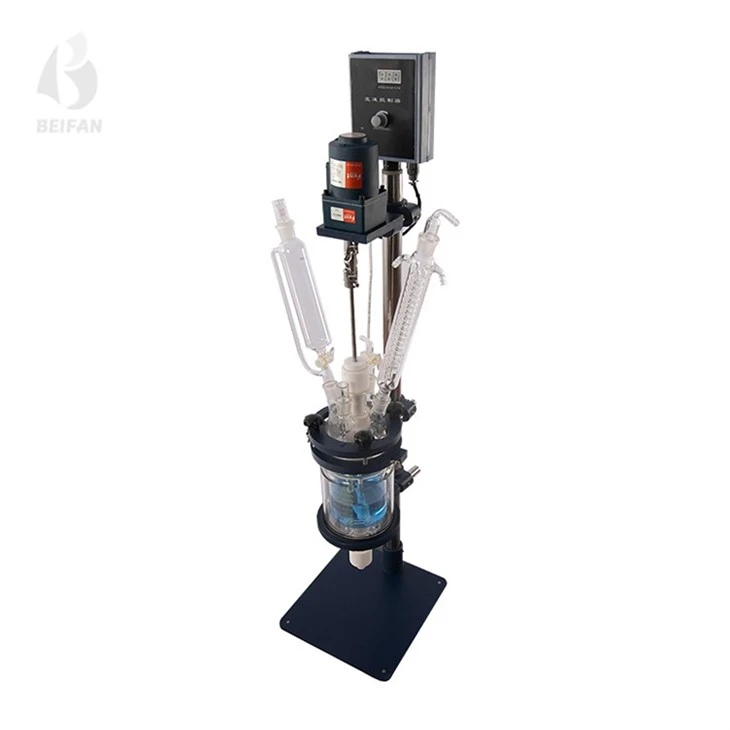

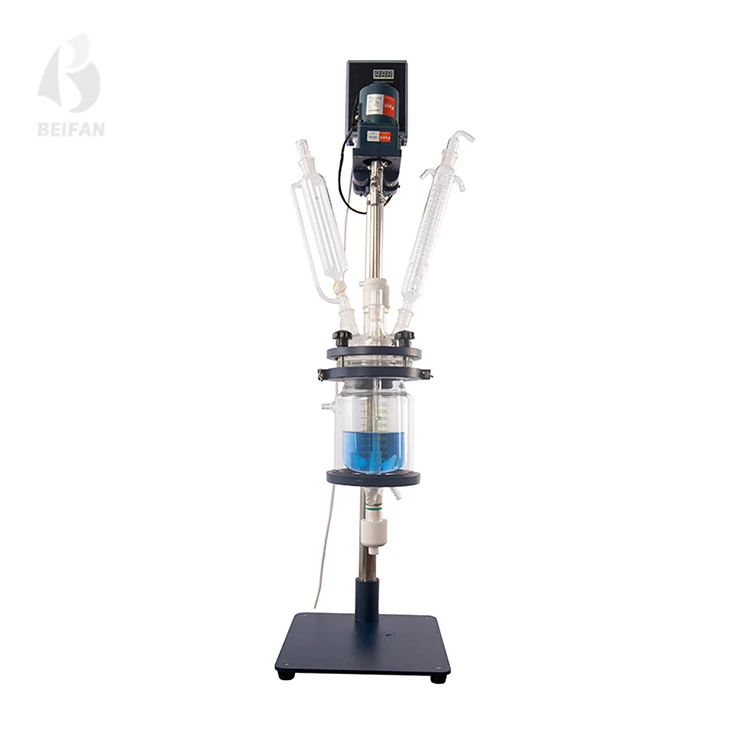

The reaction solvent is placed in the inner layer of the double-layer glass reactor for stirring reactions. The interlayer circulates through cold and heat sources (refrigeration liquid, water, thermal oil), so that the inner layer can achieve constant temperature heating or cooling reactions, and the distillation and reflux of the reaction solvent can be controlled. , is an ideal testing and production equipment for the preparation of modern synthetic new materials.
High quality borosilicate glass 3.3 has good chemical-physical attribute.
Low speed booster motor; High torque; no spark; frequency control, smooth operation.
PTFE rotary seal assembly; Patented product; High vacuum degree and long useful life.
PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.
Selection of our company's heating and cooling circulating device, we match standard connector and the suitable connection pipe.
Features:
◆Distillation and reflux can be carried out simultaneously
◆Special long-lasting mixing seal
◆Imported frequency conversion speed regulation or electronic stepless speed regulation, AC reduction motor driven stirring, strong stirring force, no brushes, no sparks
◆Materials come into contact with GG17 glass and PTFE, no cross contamination
◆Digital display of speed and high and low temperature, easy to operate.
Technical Specifications:
|
Model |
S212-05 |
S212-10 |
S212-20 |
S212-50 |
S212-100 |
S212-200 |
|
Reaction Volume(L) |
5L |
10L |
20L |
50L |
100L |
200L |
|
Jacket Volume(L) |
2L |
5L |
8L |
12L |
18L |
25L |
|
Reactor Material |
High quality borosilicate 3.3 glass |
|||||
|
Support Frame Material |
Stainless steel 304 and coated aluminum |
|||||
|
Neck No. On Lid |
5 |
6 |
||||
|
Rated. torque(N.cm) |
140 |
177 |
177 |
177 |
285 |
550 |
|
Motor power(W) |
90 |
120 |
120 |
120 |
200 |
370 |
|
Rotating speed(rpm) |
0 ~ 600 (customizable) |
|||||
|
Power supply |
220V or 110V / 50-60HZ |
|||||
|
Discharge |
PTFE (Teflon) bottom discharge valve with no deadspace |
|||||
|
Working Temp range |
-60 to 200°C |
|||||
|
Pressure Range |
Full vacuum to atmosphere |
|||||
|
Max jacket pressure |
0.5 bar |
|||||
