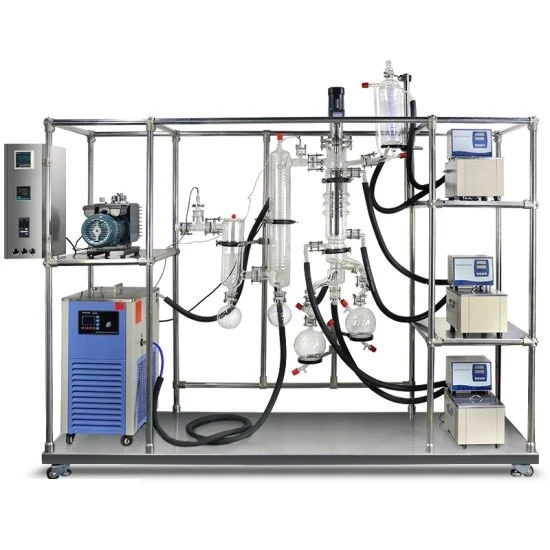

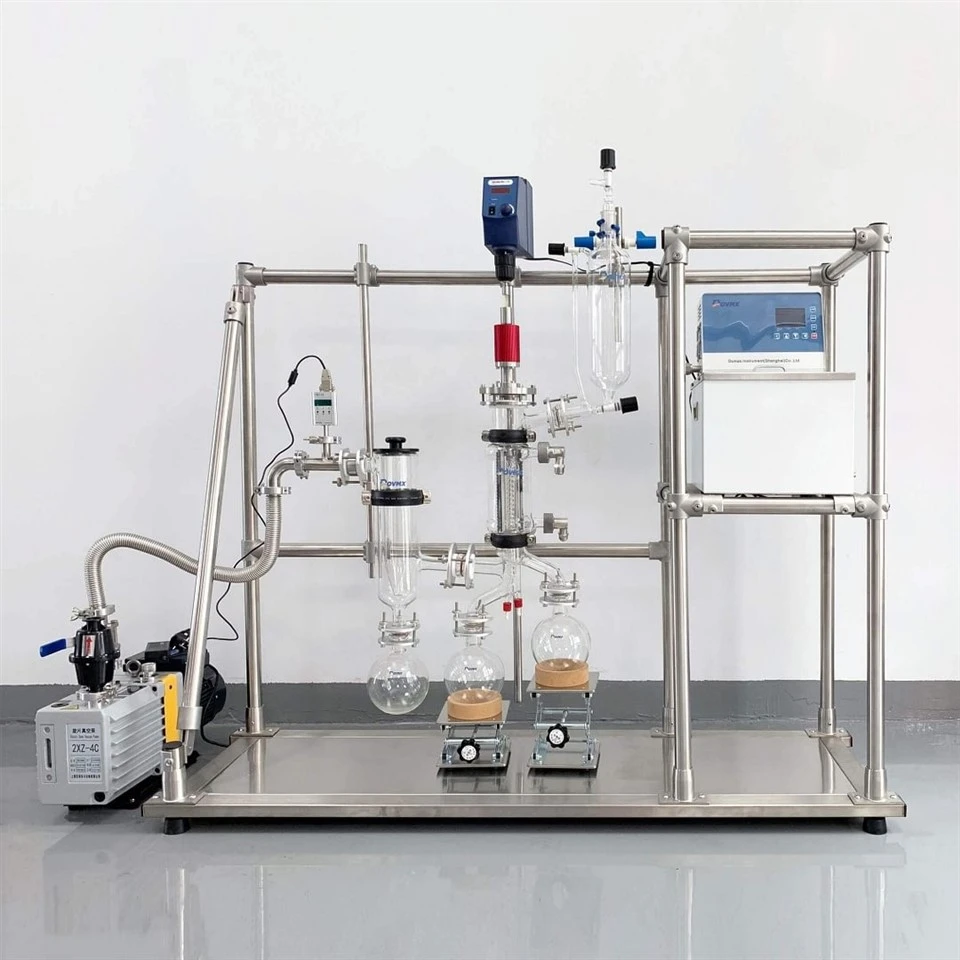

Wiped Film Distillation introduce
Wiped Film Molecular Distillation is specifically designed and optimized for the extraction and purification of Vitamin A and Vitamin E, which can be processed and purified to a purity of more than 98%.
By eliminating common bottlenecks and enhancing the condenser configuration, we have created a more intuitive and efficient machine. These systems are ideal for batch distillation or continuous processing, equipped with heated gear pumps, and can be equipped with optional drums or wipers.
Wiped Film Distillation parameter
| Model | BF-60 | BF-80 | BF-100 | BF-150 | BF-200 | BF-230 |
| Evaporation area ( M2 ) | 0.06 | 0.1 | 0.15 | 0.25 | 0.35 | 0.5 |
| Reference processing capacity (L/H) | 0.5-1.0 | 1.0-5.0 | 2.0-10 | 3.0-15 | 4.0-20 | 6.0-30 |
| Tank capacity (L) | >2.0 | >2.0 | 3 | >3.0 | >5.0 | >10.0 |
| Feeding method | Manual knob valve feed (default) | |||||
| Peristaltic pump feed (optional) | ||||||
| Gear pump, automatic continuous feeding, adjustable speed (optional) | ||||||
| Discharging method | Discharge after shutdown (default) | |||||
| Manual unloading (optional) | ||||||
| Gear pump, automatic and continuous discharging, adjustable speed (optional) | ||||||
| Vacuum degree (mbar) | (up to) 0.001 mbar | |||||
| Speed range (rpm) | 0-450 | 0-300 | ||||
| Operating temperature | (Maximum temperature) 300℃ | |||||
| Insulation method | Heating with electric heating tape | |||||
| Double jacket, heated by heat transfer medium | ||||||
