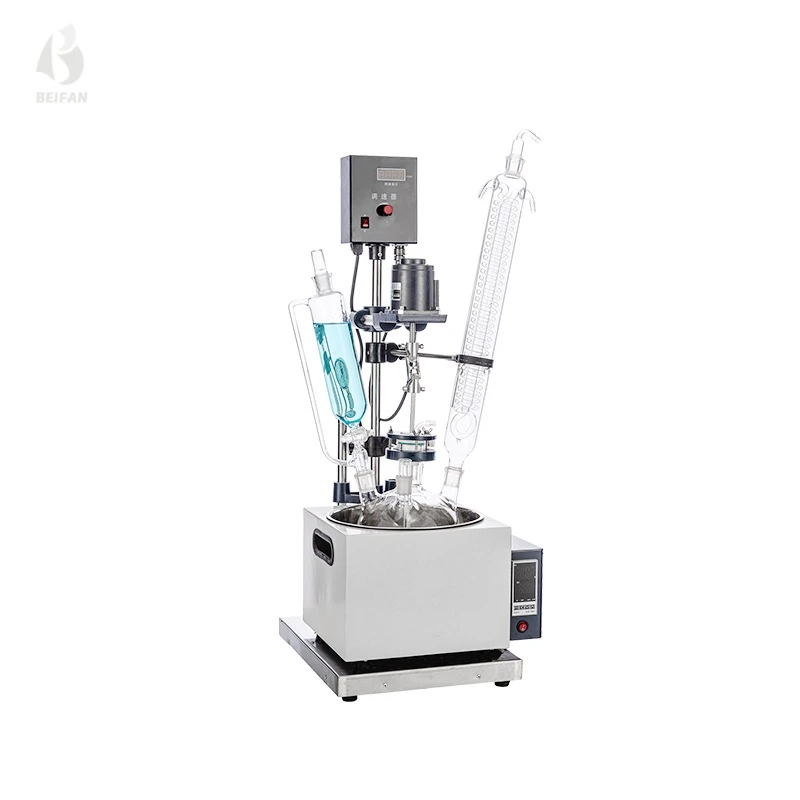

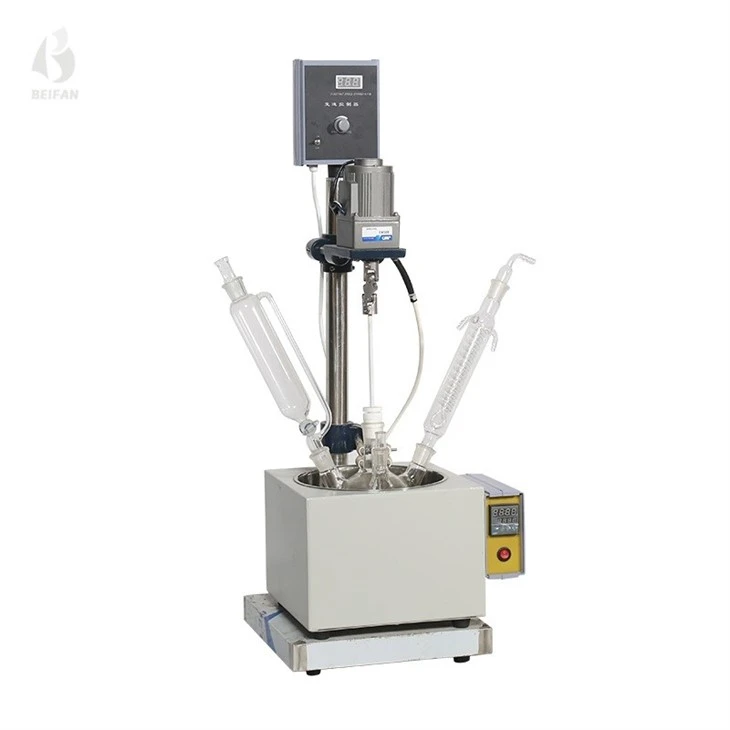

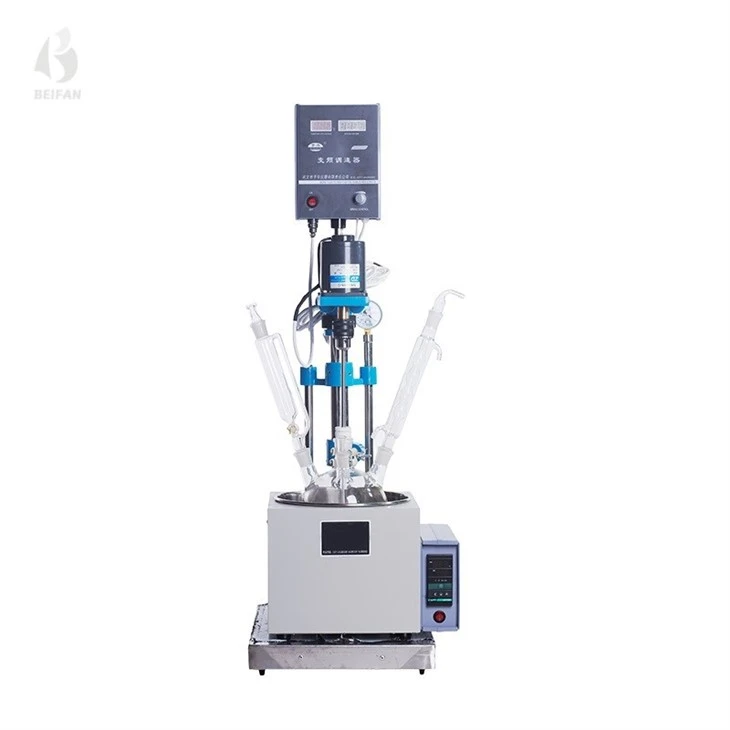

glass reactor vessel introduce
The uses of glass reactors can be summarized as follows: high temperature reaction (the lowest temperature can reach 200°C), low temperature reaction (the lowest temperature can reach -80°C), vacuum reaction for negative pressure, solvent synthesis reaction at constant temperature, distillation reflux reaction, vacuum distillation reaction, separation and extraction reaction, purification reaction, concentration reaction, stirring reaction, etc. According to different use conditions and requirements, users can adjust the use temperature and pressure to adapt to different experimental environments.
glass reactor vessel parameter
| Basic specification | Name | F-200L |
| Glass material | GG-17 | |
| pot shell material | Spraying antiseptic shell | |
| Inner port material | stainless steel 700*800mm | |
| Moving mode | Brake type universal corner wheel | |
| Volume | Cylindrical type 200L | |
| Port No. of reactor cover | 6 | |
| Distance between discharge to floor | 450mm | |
| Temperature range | .-80 to 250degree | |
| Vacuum | 0.098Mpa | |
| Stirring speed | 0-280rpm | |
| Stir rod diameter | 15mm | |
| Stir power and voltage | 700W1/5 220V/50Hz | |
| Heating power and voltage | 12KW 380V/50Hz | |
| Overall size (mm*mm*mm) | 1200*1000*2800 | |
| Gross weight(KG) | 180 |
