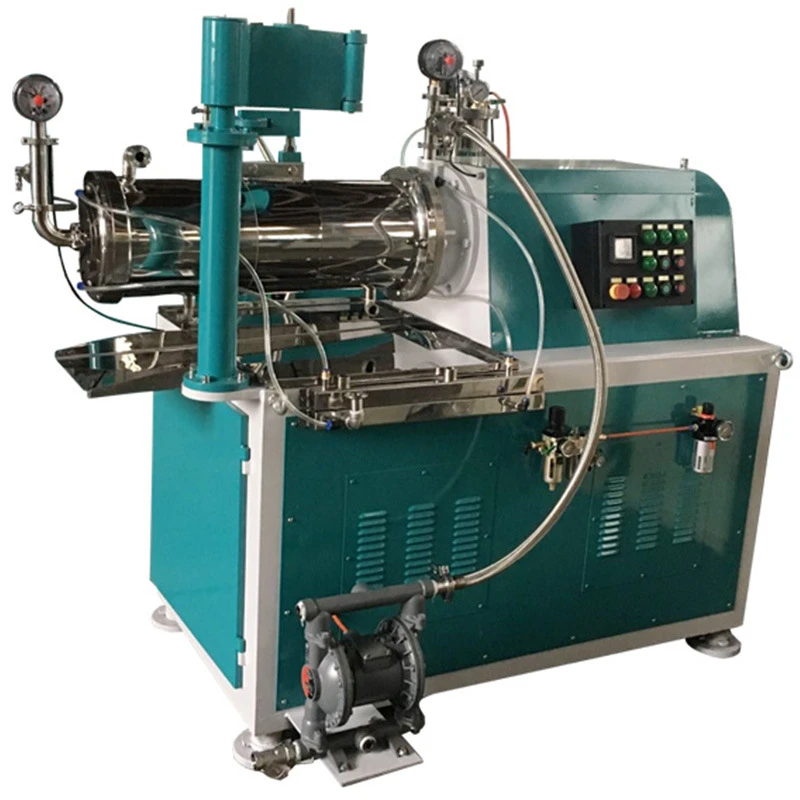

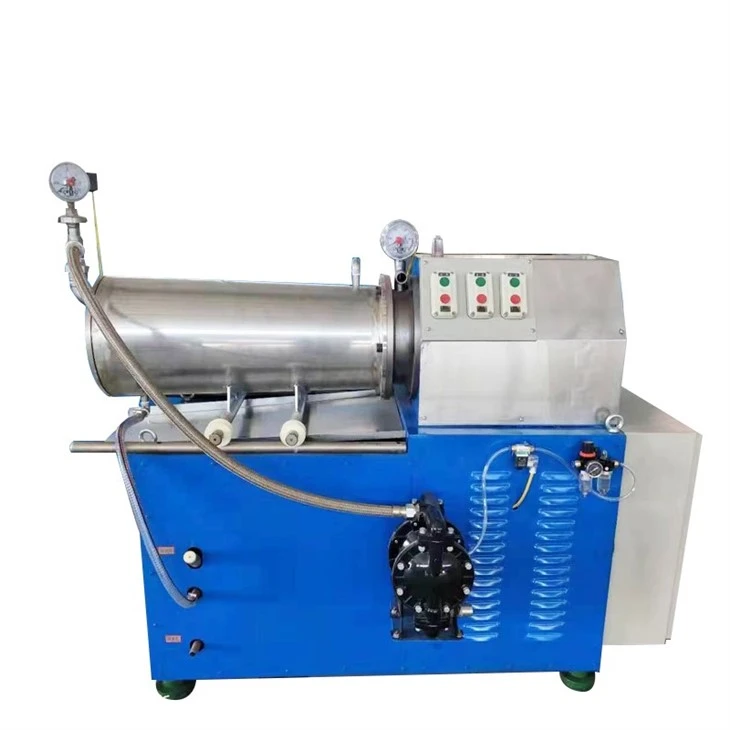

Nano horizontal sand mill Working principle:
The material pump is used to input the solid-liquid phase mixture material that has been pre-dispersed and moistened by the mixer into the cylinder. The material and the grinding medium in the cylinder are stirred by the high-speed rotating disperser, so that the solid particles and the grinding medium in the material are They produce stronger collision, friction and shearing effects with each other to achieve the purpose of grinding fine particles and dispersing and agglomerating. The ground and dispersed materials pass through the dynamic separator to separate the grinding media and flow out from the discharge pipe. Horizontal sand mills are particularly suitable for dispersing and grinding products with high viscosity and fine particle size requirements.
Nano horizontal sand mill Technical Parameters
| model | volume(L) | power(KW) | medium(mm) | weight(KG) | Dimensions(mm) | |
| BF-100 | 100 | 110 | 0.1-2.0 | 5600 | 2400X1650X2200 |
