Main features:

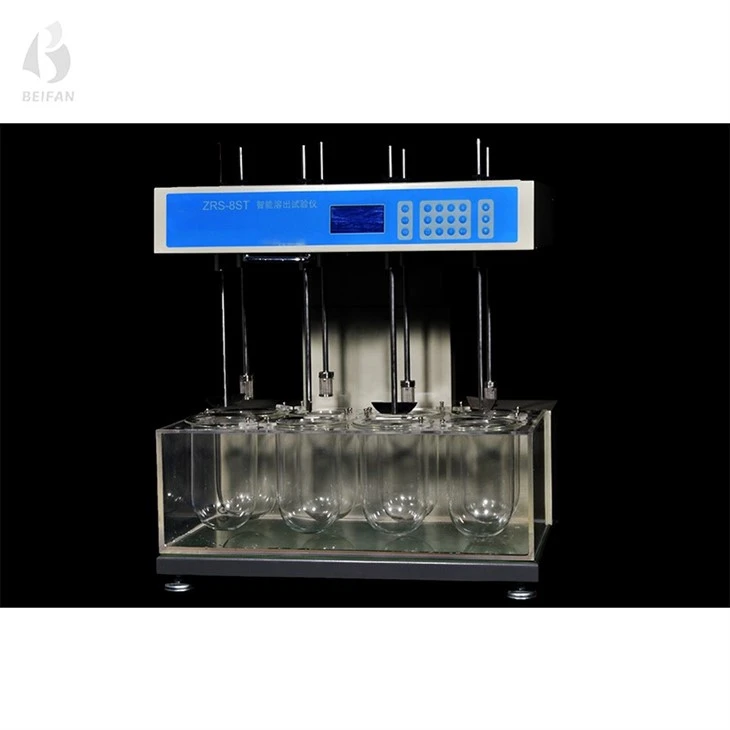

ZRS-8ST is a dual-function model of electric lifting head and head flipping; when replacing the paddle rod or basket rod, you only need to operate the keyboard, and the head will automatically lift; the head can be continuously flipped on the basis of the head lifting. It makes the paddle changing work more convenient and handy.
Features about :
1. Can accommodate 8 basket poles or paddle poles.
2. Can install 8 new dissolution vessels with a height of 185mm and light-shielding dissolution vessels.
3. Friendly human-machine interface, simple and convenient operation.
4. All working parameters can be preset and automatically saved, so there is no need to repeat settings when starting the instrument next time.
5. Accurate speed, smooth operation and low energy consumption.
6. The constant temperature water bath uses a built-in integrated temperature sensor and a new software and hardware temperature measurement and control method, which has the characteristics of fast temperature rise and high accuracy; temperature deviation can be easily corrected through software.
7. Independently start, pause and reset experiment timing.
8. Automatic protection functions such as self-check fault alarm and over-temperature protection.
9. The paddle rod, basket rod and basket body are all made of stainless steel, and their quality and performance meet the requirements of the Chinese Pharmacopoeia.
Main technical indexes of dissolution tester:
|
Amplitude of swing of stirring paddle |
≤0.3mm |
|
Amplitude of swing of rotation basket |
≤0.8mm |
|
Deviation of rotating rod and axle of dissolution cup |
≤1mm |
|
Speed adjustable range |
20-200 rpm |
|
Rotating speed resolution |
1 time/min |
|
Water bath temperature adjustment range |
Room temperature: -45ºC |
|
Temperature resolution |
0.1ºC |
|
Temperature control accuracy |
≤±0.3ºC |
|
Number of sampling periods: 9 different sampling periods can be preset. |
|
|
Time of sampling period |
1-999min optional for each period,9 sampling periods can be counted down by sections. |
|
Timing error |
±0.5min |
|
Pharmacopoeia parameter calling |
The instrument saves 300 dissolution test parameters in Chinese Pharmacopoeia, which can be called randomly. |
|
Large screen liquid crystal display and intelligent menu operation. |
|
|
The head can lift and descend automatically and attaches overturn function (a model whose control is very convenient). |
|
|
Electronic sensor can monitor the temperatures of various point of water bath case. |
|
|
Standard configuration |
8 paddles and 8 cups |
|
Small cup accessories can be optional. |
|
|
Electrical heating power |
1100W |
