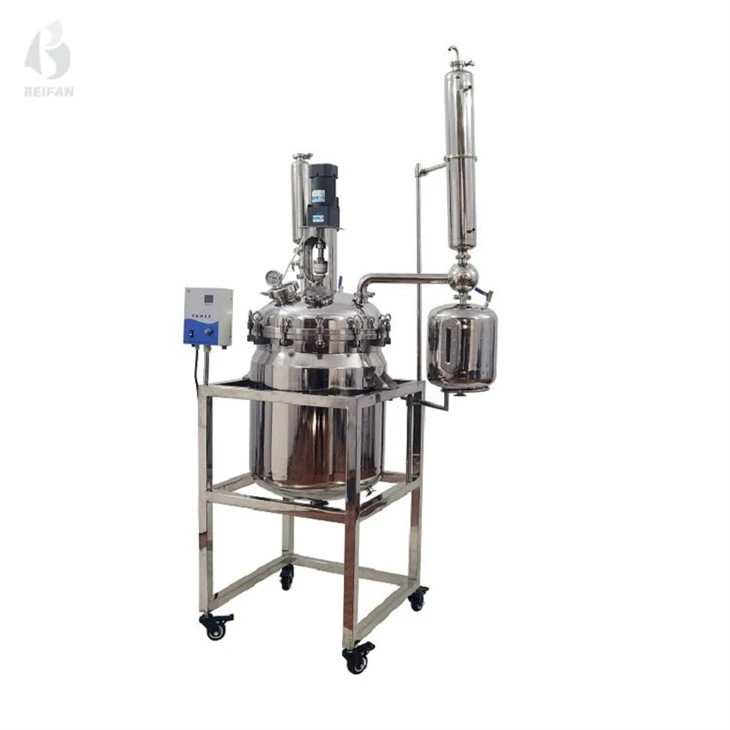

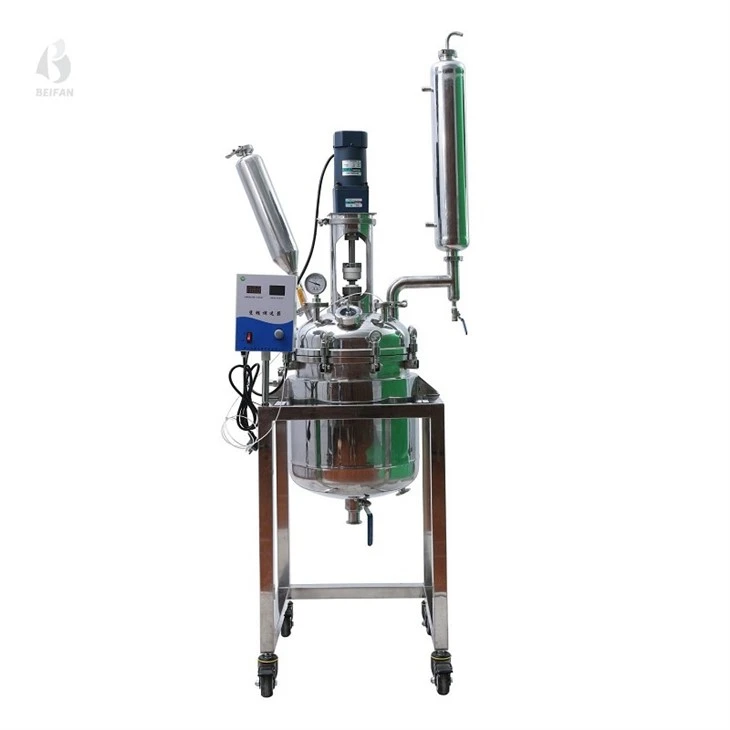

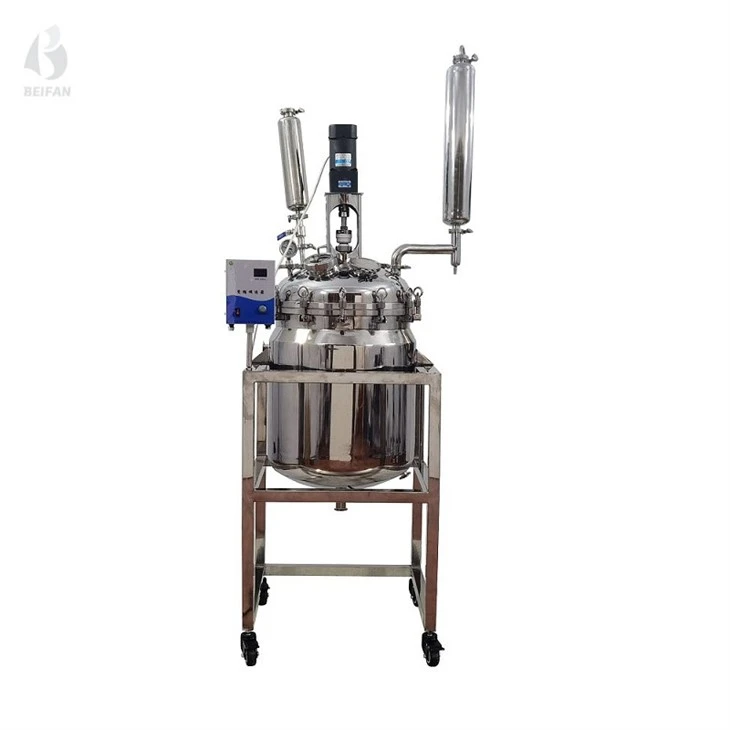

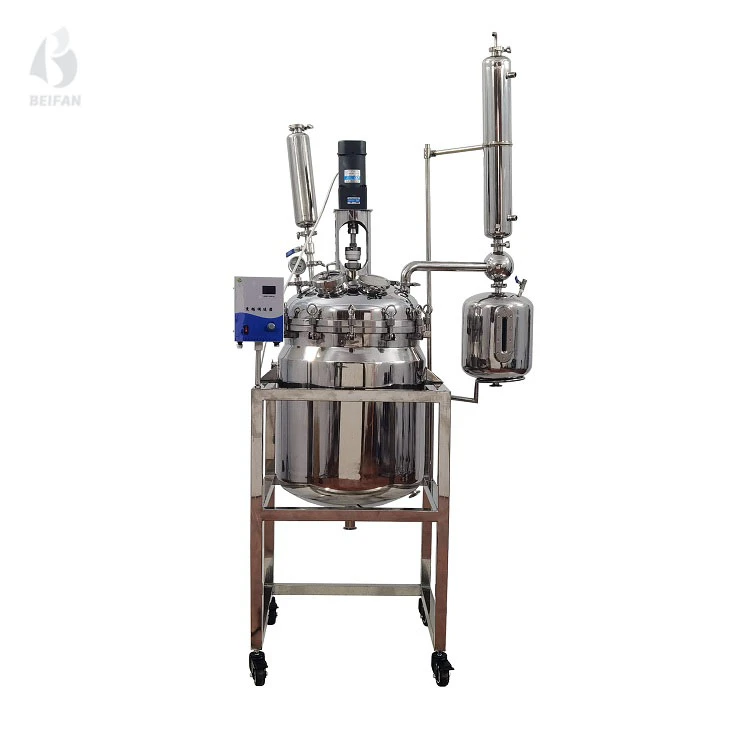

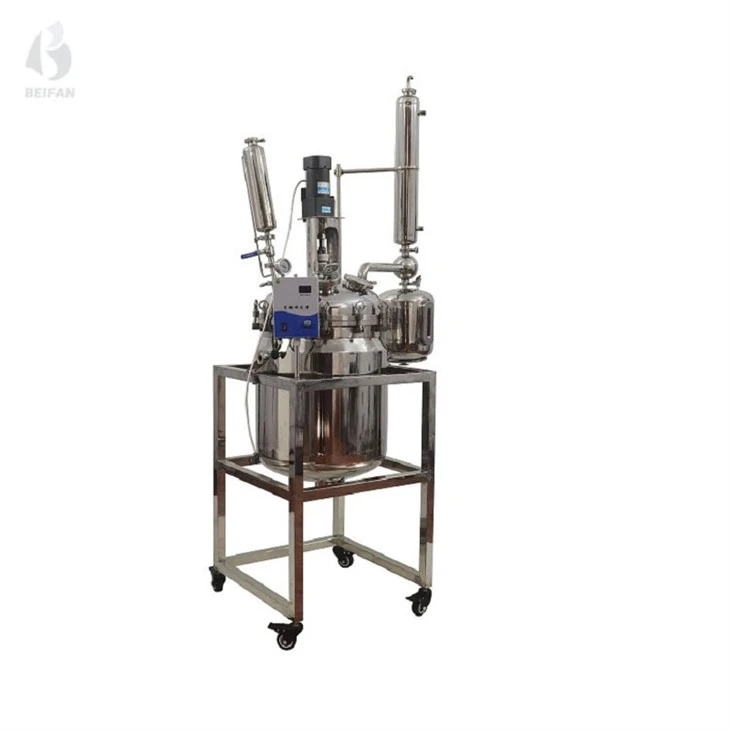

Stainless steel reactor equipment can be designed and customized according to the material's production process to achieve technical configurations of heating, evaporation, cooling, low speed, and high speed to better meet production needs; better corrosion resistance gives it a longer service life , saving production costs and suitable for enterprise use. Stainless steel reactors are used in petrochemical, rubber, dye, pharmaceutical and other industries. This is a machine that reacts with two or more materials and uses mechanical force and gravity to complete the processes of sulfonation, nitration, hydrogenation, alkylation, polymerization, polycondensation, and many other organic dyes and their intermediates. Process reaction equipment.
Features:
1. Variable frequency speed regulation, AC induction motor, constant speed, brushless, spark free, safe and stable, suitable for continuous operation.
2. The entire instrument is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.
3. After the interlayer interface is circulated, it can be connected to hot oil for heating reaction, and can be connected to refrigerant for low-temperature reaction.
4. It can react at room temperature, and the reaction heat can be quickly removed by running water.
5. The lower discharge port adopts a stainless steel ball valve, which has no dead corners inside the container and can be disassembled for easy discharge of solid materials.
6. The eight port reactor cover with a super large port design is easy to clean, and the standard port socket can be optionally equipped with reflux and distillation synthesis devices.
|
Parameters Table |
||
|
Technical specifications |
Model |
BSF-30L |
|
Dimensions (mm) |
530*530*1900 |
|
|
Kettle volume (L) |
30 |
|
|
Inter-layer volume (L) |
≈8 |
|
|
Voltage/frequency (V/Hz) |
220/50 |
|
|
Reaction temperature (°C) |
-120~260 |
|
|
Achievable vacuum (MPA) |
-0.098 |
|
|
Stirring speed (rpm) |
0-460 |
|
|
Power (w) |
200(1：3) |
|
|
Function configuration |
Seal form |
SUS304 ceramic composite mechanical seal |
|
Number of kettle cover ports |
Eight ports (optional) |
|
|
Material |
SUS316L/SUS304 |
|
|
Temperature measuring hole |
50.5 chuck/φ10 temperature measuring tube |
|
|
Dropping hole |
50.5 chuck/1000ml funnel |
|
|
Condensation hole |
50.5 Chuck/φ89 column cooler |
|
|
Return hole |
50.5 chuck/φ38 return port |
|
|
Scraper sight glass |
φ51 |
|
|
Sight glass |
φ32 |
|
|
Pressure gauge |
50.5 chuck/± integrated pressure gauge |
|
|
Exhaust |
2 dm exhaust valve |
|
|
Stirring |
SUS316L push-type stirring paddle |
|
|
Optional (additional fees apply) |
Explosion-proof whole machine/ electric heating/Total 316L/collection tank/ mobile frame /spraying PTFE |
|
|
Other |
It can be customized according to needs |
|
