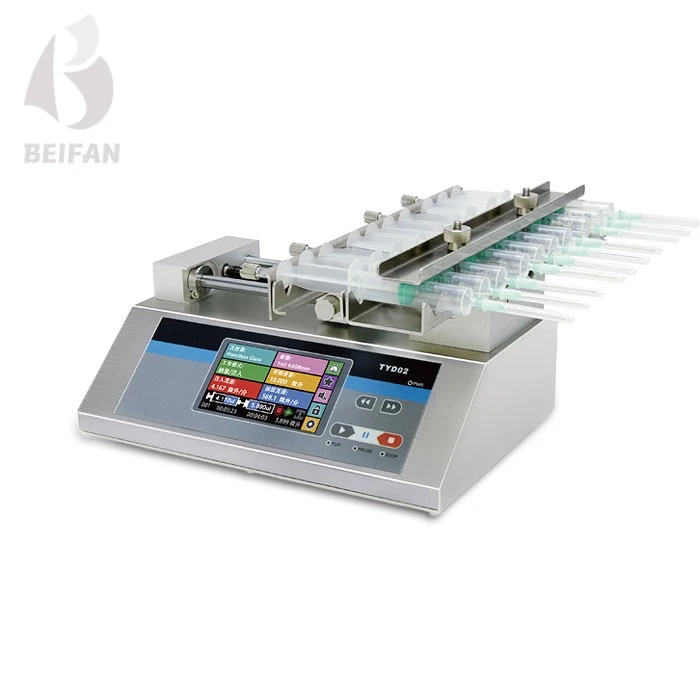

electric syringe pump product description:
- Multiple syringes can be assembled and the quantity can be customized.
- Excellent performance, high precision, long life and good reliability.
-Support multiple working modes.

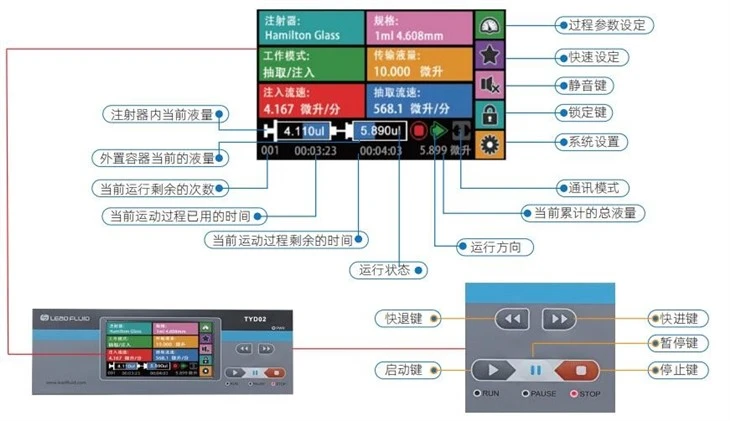

- High-resolution color touch screen, easy to set up, intuitive display of parameters and status.
- With adjustable protection mechanism and alarm mechanism.
- Adopts RS-485 communication and supports MODBUS protocol to facilitate connection with other devices.
- Full stainless steel housing, easy to clean and maintain.
electric syringe pump Technical Parameters:
- Syringe size: 10uL-100mL/min.
- Working modes: infusion, return, infusion/return, return/infusion, continuous mode.
- Number of channels: 10.
- Pump stroke: 140mm.
- Each micro-step forward of the push rod: 0.156um/ustep.
- Line speed: 1um/min-150um/min.
- Linear resolution: 1um/min.
- Linear stroke accuracy: error <±0.35% (>30% of pump stroke).
- Linear force: Maximum rating >20KGF.
- Thrust adjustment: 1-100% adjustable.
- Syringe selection: major manufacturers and models can be built in, or customized and input sizes and diameters.
- Flow calibration: Obtain more accurate fluid volume through calibration procedures.
- Display: 4.3-inch color LCD display, resolution 480*272, color 65K.
- Operation method: touch screen + buttons.
- Power-off memory: automatically stores operating parameters.
- Other functions: pause and stop, sound prompts, lock parameters, fast forward and rewind.
- Status signal output: 1 stop status, 1 direction status.
- Control signal input: 1 channel starts when the downward edge triggers, 1 channel stops when the downward edge triggers.
- Communication interface: RS485, MODBUS protocol.
- Applicable power: AC90-264V/20W.
- Working temperature: 5-40℃.
- Relative humidity: <80%RH.
- Dimensions: 290*280*175 mm.
- Weight: 5.2 kg.
