automated syringe pump Introduction

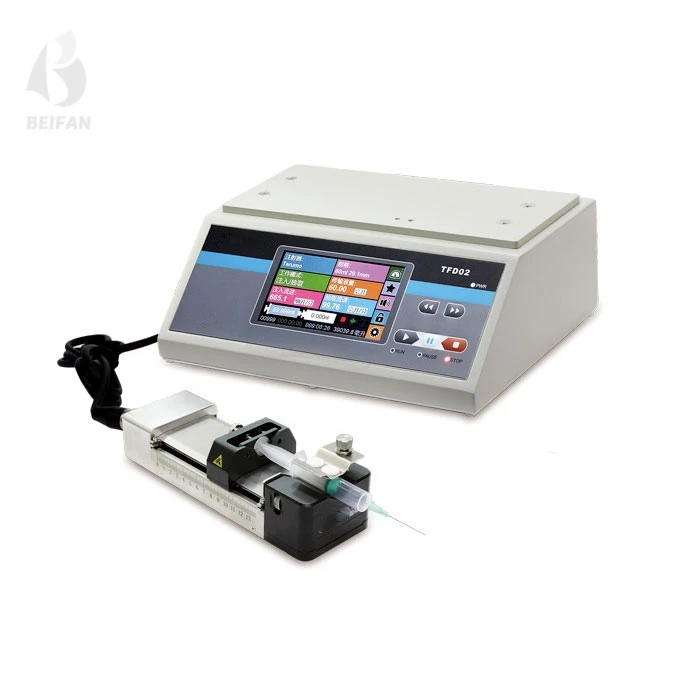

The syringe pump adopts an integrated desktop design, with a 4.3-inch high-definition LCD touch screen display and operation. It can hold a plastic syringe or a glass syringe. The syringe capacity range is as wide as 10μL~140ml, and the flow range is 0.184nl/min~83.318ml/ min;
Using an excellent control system and precise mechanical structure, the stroke control accuracy error is less than ±0.35%. Multiple working modes are optional and powerful. It is very suitable for high-precision micro-transmission of various fluids in scientific research experiments;
The transmission screw is fixed using high-strength aviation bearings. Compared with traditional copper sleeve bearings, the service life of the screw is significantly improved and the accuracy is higher;
Strong anti-electromagnetic interference performance, can operate continuously and stably under high-voltage electrostatic electric fields;
RS485 communication, compatible with MODBUS protocol, can form an automated control system with various host computers such as computers, PLCs, and microcontrollers;
automated syringe pump Technical parameters
|
Work mode |
infuse, withdraw, infuse/withdraw, withdraw/infuse, continuous mode |
|
Channel |
1 |
|
Stroke of pump |
110mm |
|
Advance per microstep |
0.156μm/μstep |
|
Linear speed |
1μm/min～150mm/min |
|
Linear resolution |
1μm/min |
|
Linear travel accuracy |
error<±0.35%(>30% of pump stroke) |
|
Max rated linear force |
>10kgf |
|
Thrust regulation |
1～100% arbitrary adjustable |
|
Syringe size |
10μL～60mL |
|
Syringe selection |
built-in main manufacturers, the main model syringe to choose, can use custom syringe, direct input syringe size and diameter |
|
Flow range |
0.184nL/min～83.318mL/min |
|
Flow calibration |
through the calibration procedure to obtain more accurate fluid volume |
|
Display mode |
4.3-inch color LCD, with screen display and transfusion volume, residual fluid volume, flow, operation display operation status,direction, syringe specification, Animation display operation status |
|
Operation mode |
touch screen + common function keys |
|
Power-off memory |
storing the running parameters automatically |
|
Function |
pause and stop,the sound tip,the lock parameters,fast forward and retreat quickly,display brightness adjustment |
|
State signal output |
1 road start-stop status ,1 road direction status |
|
Control signal input |
1 road the falling edge triggers start and 1 road the falling edge triggers stop |
|
Communication |
RS485,Modbus protocol |
|
Controller dimension |
245×205×95mm |
|
Execution unit dimension |
266×86×76mm |
|
Weight |
2+1.8kg (controller + execution uni) |
|
Power supply |
AC100～240V,50/60Hz |
|
Environment |
temperature 5～40℃,relative humidity<80% |
Reference Table of Syringe Specifications and Flow Rate
|
Syringe size |
Syringe ID (mm) |
Min flow rate (nl/min) |
Max flow rate (ml/min) |
|
10μl |
0.485 |
0.184 |
0.027 |
|
25μl |
0.729 |
0.417 |
0.0626 |
|
50μl |
1.03 |
0.833 |
0.125 |
|
100μl |
1.457 |
1.667 |
0.25 |
|
250μl |
2.304 |
4.169 |
0.625 |
|
500μl |
3.256 |
8.326 |
1.248 |
|
1ml |
4.699 |
17.342 |
2.601 |
|
5ml |
11.989 |
112.89 |
16.933 |
|
10ml |
14.427 |
163.469 |
24.52 |
|
20ml |
19.05 |
285.027 |
42.754 |
|
30ml |
21.59 |
366.09 |
54.913 |
|
60ml |
26.594 |
555.459 |
83.318 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and
pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
