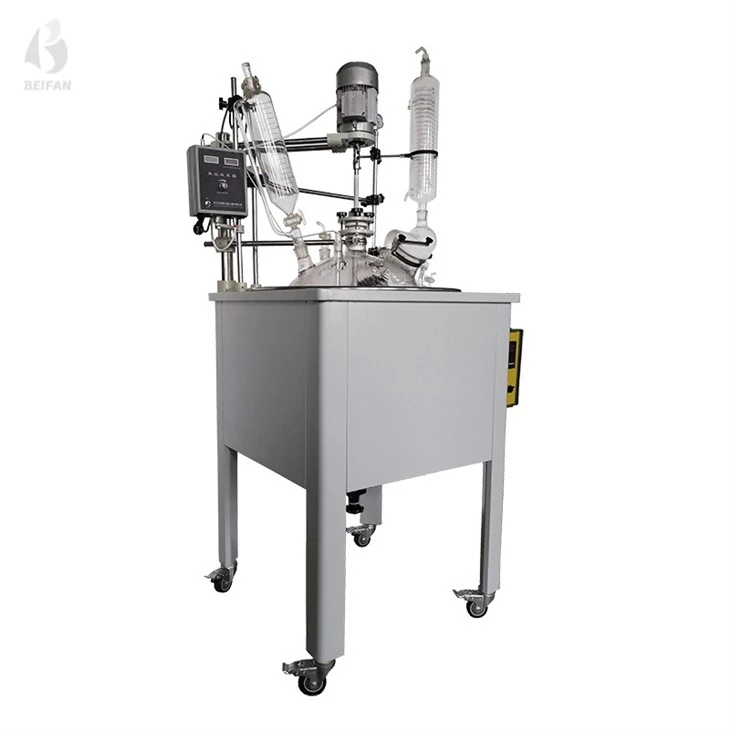

100L Single Layer Glass Reactor

Name: China 100L Single Layer Glass Reactor Manufacturers, Suppliers and Factory - Good Price
Brand: Beifan
SKU: 226484112

Brand:BEIFAN
Model:BF-100L single layer glass reactor
Application:100L Single-layer glass reactors are commonly used biochemical instruments and are widely used in modern fine chemicals, biopharmaceuticals, scientific research experiments and other industries. They can be used for concentration, distillation, retention, and separation under constant speed, constant force, and constant temperature conditions. Purification reaction is an ideal instrument and equipment for teaching, experiment, pilot test and production.

Send Inquiry

Description

We offer a full range of custom solutions to meet your specific process requirements. The capacity can be 300ml-100L.We also have stainless steel evaporator, industrial reactors, and hydrothermal synthesis reactors.

The BF series single-layer glass reactor is a multi-functional reactor that can carry out various biochemical synthesis reactions under constant temperature conditions, and can also perform reflux or distillation at different temperatures.

100L SINGLE LAYER GLASS REACTOR

100L lab-grade working volume.
High-purity borosilicate glass (heat/chemical-resistant).
Variable-speed magnetic stirring (for precise mixing).
Compatible with lab external heating/cooling baths.
Transparent for in-situ reaction visual monitoring.
PTFE seals (chemical-compatible & leak-proof).
Easy-clean bottom discharge valve (lab-friendly).
Compliant with lab safety standards.

Name	BF-100L
Glass material	GG-17
pot shell material	Spraying antiseptic shell 6406401200
Inner port material	stainless steel 550*650mm
Moving mode	Brake type universal corner wheel
Volume	Cylindrical type 100L
Port No. of reactor cover	7
Distance between discharge to floor	450mm
Temperature range	-80 to 250degree
Vacuum	0.098Mpa
Stirring speed	0-450rpm
Stir rod diameter	15mm
Stir power and voltage	200W1/3 220V/50Hz
Heating power and voltage	8KW 380V/50Hz
Overall size (mmmmmm)	7306302600
Package size (mmmmmm)	1900780870 1.29CBM
Gross weight(KG)	120
Speed display mode	Electronic stepless speed regulation
Motor	Low speed booster motor, speed ratio 3: 1
Speed display mode	LCD digital display
Temperature display	digital display
Seal	PTFE seal, ￠60 flange stir port
Condenser	Vertical high efficiency double reflux condenser 120*640mm, standard 40#
Reflux (distillation) device	Return bend with feeding switch, 50# ball mill port
Drop adding device	2L Constant pressure funnel, #40 standard
Pressure release device	standard 34# pressure release valve
Temperature tube	standard 24#
Solid adding (cleaning) port	￠120 flange port with PTFE cover
Discharge	glass discharge valve, ￠80 flange port
Vacuum display mode	Vacuum gauge
Mixing connection	universal joint link
Stir rod	Anchor and Spiral type, Stainless steel rod with PTFE
